S4 two-speed servo chain hoist
TWO-SPEED SERVO CHAIN HOIST
S4 Series

Product Features

  • ◆  The system features a soft-limit function that reduces the risk of head-on impact and flexibly restricts the workpiece movement range.
  • ◆  The handle is ergonomically designed for comfortable grip, with dual-side control levers. A single-handed grip allows easy control of lifting and lowering, and both hands can be freely switched for alternate operation.
  • ◆  It not only achieves more precise positioning, but also provides smoother operation, lifting and landing – fully demonstrating the fast, accurate and stable characteristics of an intelligent hoist.
  • ◆  Cost-effective and suitable for various workstation lifting tasks. It reduces labour intensity, enhances the level of intelligent equipment, and ensures fast-paced operation in automated workflows.

Product Specifications and Dimensions

MODEL
ITEM
 S4B012-F S4B025-F S4B050-F
Maximum load (Kg) 125 250 500
Lifting speed – dual speed (m/min) 1/12 1/12 1/8
Rated power (kW) 0.75 0.75 1.1
Standard lifting height (m) 2.8 (customizable)
Control mode FS3 servo two-speed handle
Self weight (Kg) 25 25 31
Chain specification (mm) 5.0 5.0 5.0
Voltage Standard 380V (optional 220V)
Mechanism working class 3m/M6 3m/M6 3m/M6
Working temperature (°C) -10°C ~ 55°C

Note: The data above is for model selection reference only; the actual data on the product nameplate shall prevail.

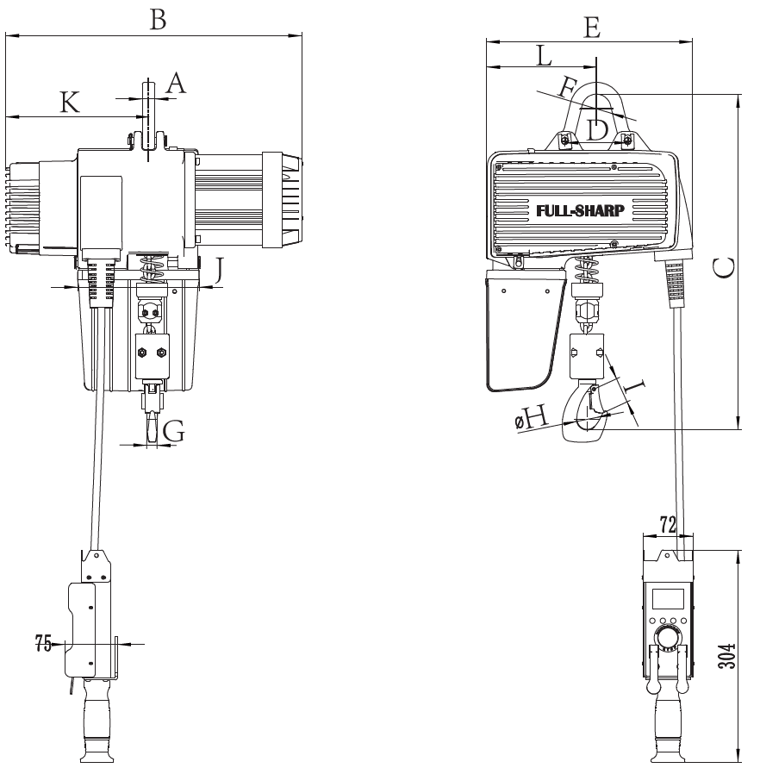

Dimension Drawing

S4 two-speed servo chain hoist dimension drawing
Overall Dimension Table (Unit: mm)
Model A B C D E F G H I J K L
S4B012-F 18 424 760 90 296 R21 19 Φ30 36 174 205 151
S4B025-F 18 424 760 90 296 R21 19 Φ30 36 174 205 151
S4B050-F 18 468 770 90 313 R21 19 Φ30 38 192 208 163

Unit: mm. Actual dimensions shall follow the official technical drawing issued by the manufacturer.

FULLSHARP | Multiple patents | Researched & manufactured in Taiwan | www.fullsharp.com
