Description
RB SERIES HIGH VACUUM REGENERATIVE PUMPS
Nine models to 18 in. Hg and 120 SCFM – oil-free, 72 dB maximum, for vacuum or pressure duty
Product Overview

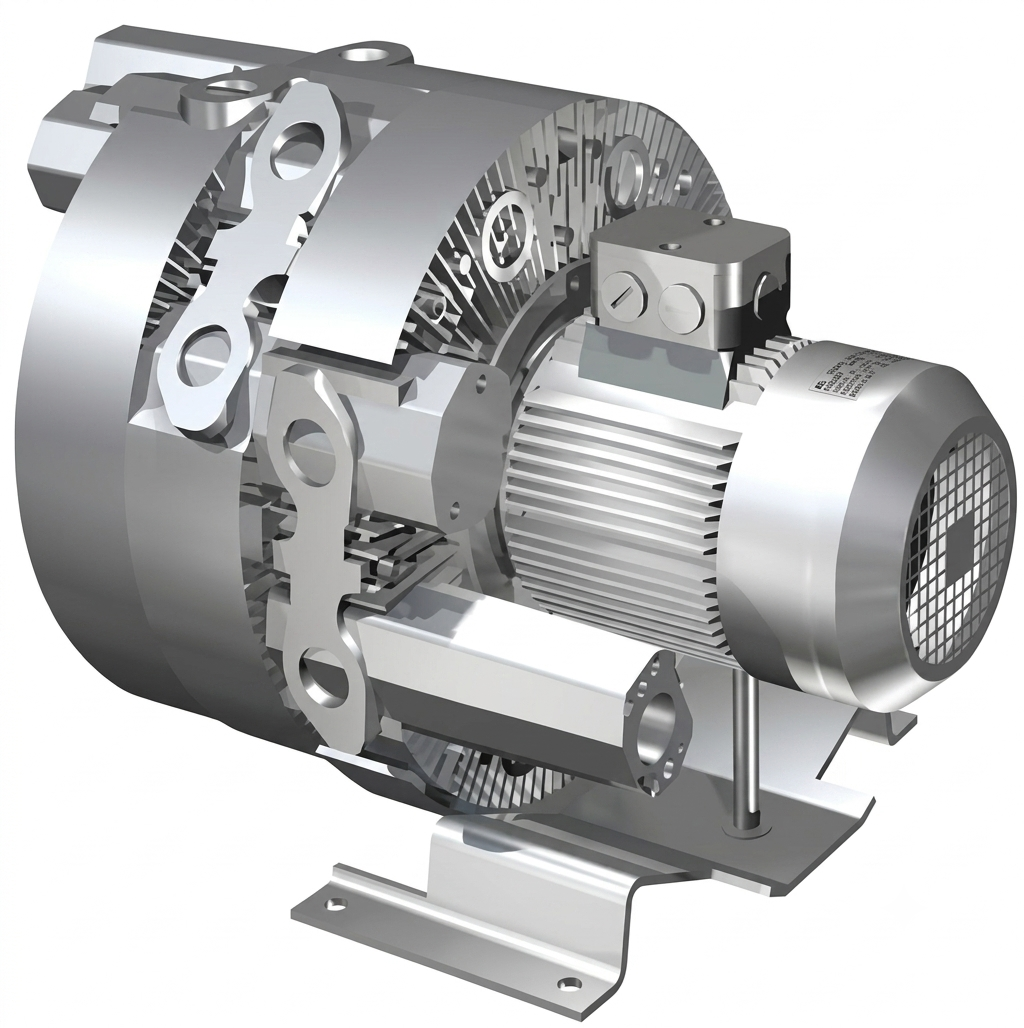

RB Series regenerative pump
ANVER continues to expand its range of vacuum equipment, and the High Vacuum / Pressure Regenerative Pump line now runs to nine models. Large production volume allows these high quality pumps to be offered at very competitive prices.
They are suitable for a variety of vacuum and pressure applications.
Not recommended for vacuum tube lifting systems. For that duty, see the VB Series regenerative vacuum stations, which are designed specifically for vacuum tube lifters.
Features
Oil and maintenance free
No oil to change and no routine maintenance schedule.
Quiet operation
72 dB maximum across the range.
Outboard bearings
Increase service life – the pump runs cooler.
Compact and light-weight
Easy to install.
Vacuum or pressure
Good for both vacuum and pressure applications.
Dual voltage wiring
Can be wired at either 208–230 V or 415–460 V.
An ideal alternative to standard rotary vane pumps and PD / rotary lobe blowers.
Specifications
| RB Series high vacuum / pressure regenerative pumps | |||||
|---|---|---|---|---|---|
| Model no. | HP | Flow [SCFM (l/min)] | Maximum vacuum [in. Hg (mm Hg)] | Rated amps | Shipping weight [lb (kg)] |
| Regenerative high vacuum direct drive blower | |||||
| RB-035-08 | 1.10 | 35 (991) | 8.9 (226) | 3.75 / 2.15 | 35 (16) |
| RB-050-09 | 1.26 | 50 (1416) | 10 (254) | 4.0 / 2.3 | 37 (17) |
| RB-062-10 | 2.01 | 62 (1756) | 10 (254) | 5.5 / 3.2 | 51 (23) |
| RB-090-11 | 2.75 | 88 (2492) | 10 (254) | 7.5 / 4.4 | 57 (26) |
| RB-119-11 | 3.42 | 120 (3398) | 11 (279) | 9.0 / 5.3 | 70 (32) |
| High vacuum / pressure vacuum pumps | |||||
| RB-036-11 | 1.26 | 35 (991) | 13 (330) | 4.0 / 2.3 | 53 (24) |
| RB-050-13 | 2.01 | 50 (1416) | 14 (356) | 5.5 / 3.2 | 64 (29) |
| RB-061-12 | 2.35 | 62 (1756) | 13 (330) | 7.5 / 4.4 | 73 (33) |
| RB-120-20 | 8.40 | 120 (3398) | 18 (457) | 21.0 / 12.0 | 189 (86) |
These specifications are based on 60 Hz. If the pump is wired at 50 Hz the specifications will change.
Vacuum relief valves are recommended. A cord strain relief is also available.
RB-035-08 · RB-050-09 · RB-062-10 · RB-090-11 · RB-119-11

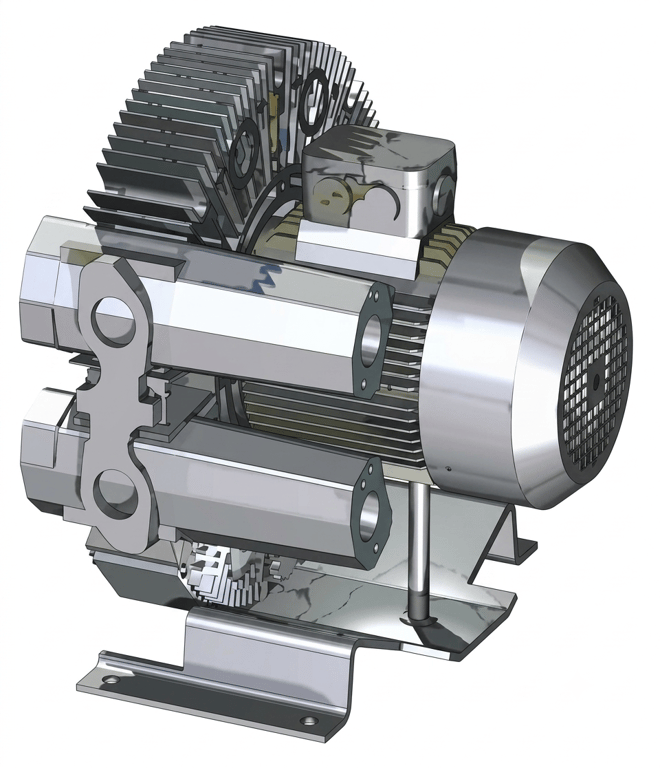

RB-120-20
