CUSTOMIZED LIFTING TOOLS

Manhattan drill gripper 89-12197

This lifting tool is a Manhattan drill lift. The lifting tool is specially adapted and lifts the drill mechanically from a pallet on a trolley to a standing position in a blast cabinet and back.

Product name	Manhattan Drill Lift 89-12197
Article number	89-12197
Serial number	A6883
Type of lifted object	Metal
Maximum capacity (kg)	13.5
Weight (kg)	50.5
Gripping technique	Manhattan — Lift high, Mechanical
Optional control	PSH
Noise level (dB)	60
Industry	Metal industry
Brand	Lifts All

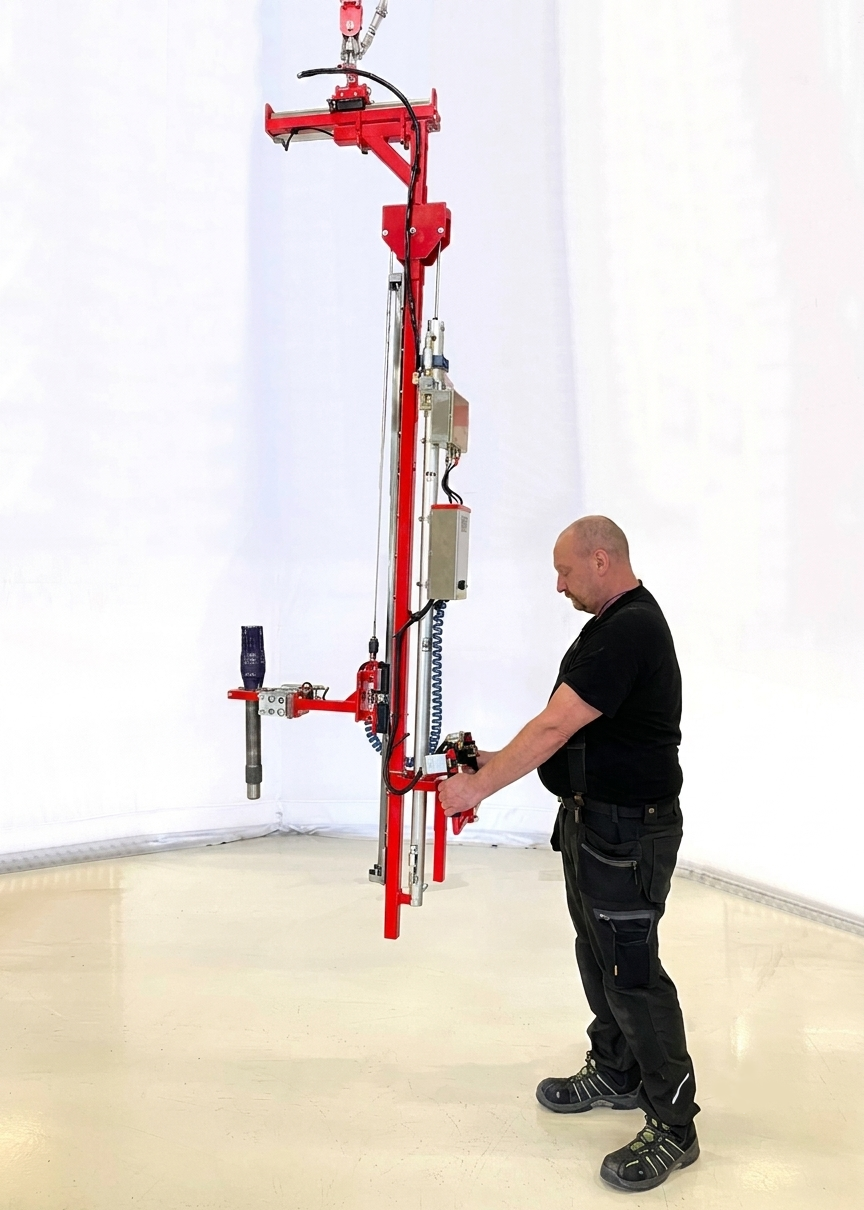

This is the Manhattan Drill Gripper, a customized mechanical lifting solution for lifting drills. This lifting tool is used for gripping drills of various sizes and weights, moving them from pallet to blaster, and back again. The center of gravity (CoG) on this machine is manually adjustable and its maximum lifting capacity is 13.5 kg.

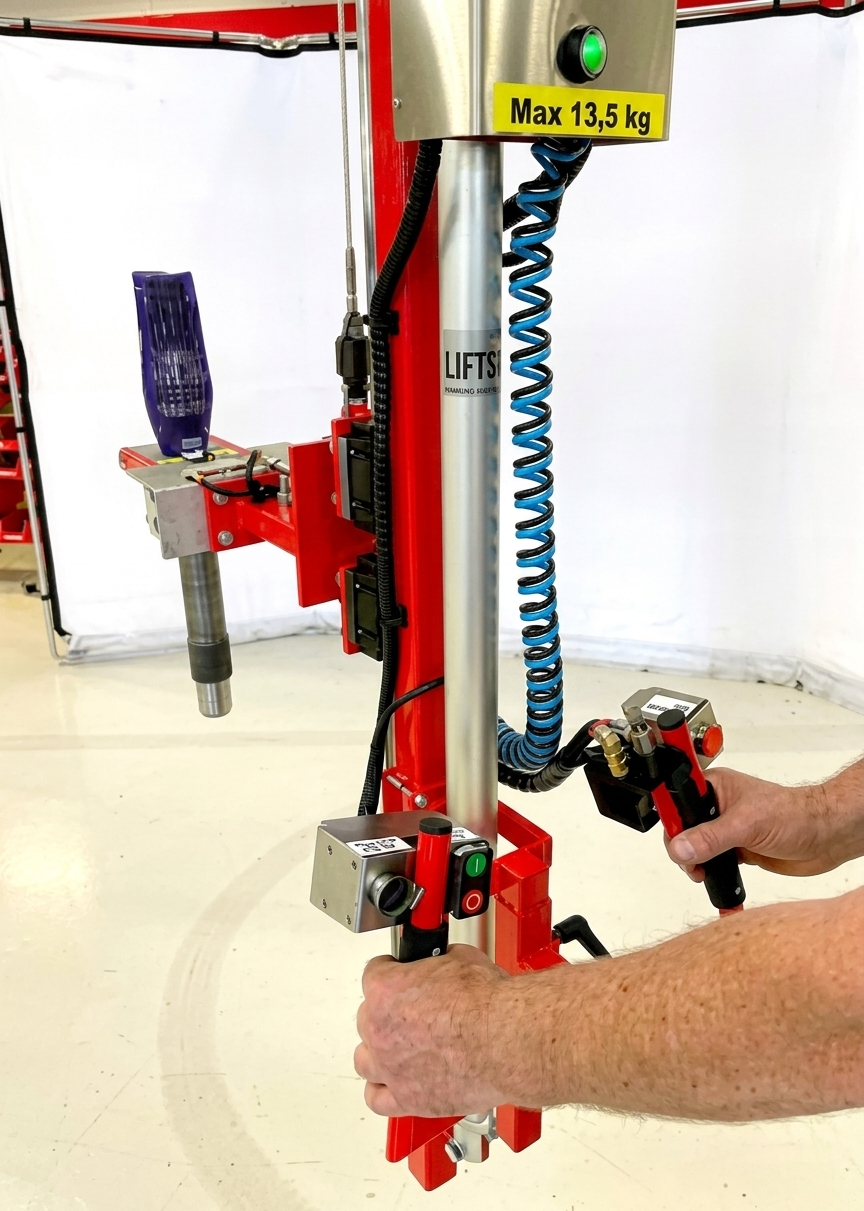

The drills are gripped while standing upright in a pallet on a trolley. After moving the lifting tool and positioning the clamps around the neck of a drill, you press the green button. The gripper then clamps onto the load. The green eye lights up to signal that it is safe for you to proceed with the lift. If the green eye does not light up, the load has not been gripped correctly and you will not be able to proceed with the lift. While lifting the drill, you can adjust the balance (CoG) of the lifting tool with the black knob on the right handle. This will move the CoG bar on the top of the machine, resulting in a more even weight distribution. After placing the load down at its destination, press the red button to disengage the clamps and release the load.

We customize the lifting tool to meet your specific needs and the load you’re lifting. We adjust Maximum capacity, rotation, tilt, and other features according to your requirements. The Manhattan is available in several different variants lifting items such as rotors, cardboard boxes, and car doors. See more of our custom-designed Manhattan lifters here.
