Description
Product Features
01HANDLE / SUSPENSION DUAL MODE
Handle mode:
Designed according to ergonomics – one person with one hand can raise, lower and control the load precisely.
Designed according to ergonomics – one person with one hand can raise, lower and control the load precisely.
Suspension mode:
Controlled with the fingertips, moving fast or slow at will with instant, effortless response. The operator can also hold the item directly with both hands and raise or lower it at the speed of their own movement for precise positioning.
Controlled with the fingertips, moving fast or slow at will with instant, effortless response. The operator can also hold the item directly with both hands and raise or lower it at the speed of their own movement for precise positioning.
02STEPLESS SPEED CHANGE / CONTROLLABLE SPEED
The speed follows the action speed of the operator, moving freely as required. Especially suitable for assembly applications that need fast travel and slow, accurate alignment in the same cycle.
03PRECISE POSITIONING FUNCTION
Extremely accurate alignment control enables the operator to handle precision and fragile items smoothly and steadily.
04SAFE AND RELIABLE
Multiple safety protection measures including soft limit, overload protection, power-off protection, photoelectric sensing and anti-rebound.
Adapt Handle
FSB4 Coaxial Sliding Handle Standard
FSB6 Coaxial Pressure Handle Optional
Note: For other handle configurations, please refer to page 15 of the catalogue.
Product Specifications and Dimensions
|
MODEL
ITEM
|
FS4L012 | FS4L025 | FS4L050 |
|---|---|---|---|
| Maximum load (Kg) | 125 | 250 | 500 |
| Lifting speed (m/min) | 0~16 | 0~16 | 0~10 |
| Rated power (kW) | 0.75 | 0.75 | 1.1 |
| Standard lifting height (m) | 2.8 (customizable) | ||
| Control mode | Coaxial sliding handle | ||
| Self weight (Kg) | 27 | 27 | 33 |
| Chain specification (mm) | 5.0 | 5.0 | 5.0 |
| Voltage | Standard 380V (optional 220V) | ||
| Mechanism working class | 3m/M6 | 3m/M6 | 3m/M6 |
| Working temperature (°C) | -10°C ~ 55°C | ||
Note: The data above is for model selection reference only; the actual data on the product nameplate shall prevail.
Dimension Drawing
Overall Dimension Table (Unit: mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS4L012 | 18 | 424 | 993 | 90 | 296 | R21 | 19 | Ø32 | 38 | 174 | 205 | 151 |
| FS4L025 | 18 | 424 | 993 | 90 | 296 | R21 | 19 | Ø32 | 38 | 174 | 205 | 151 |
| FS4L050 | 18 | 468 | 998 | 90 | 321 | R21 | 19 | Ø32 | 38 | 192 | 208 | 171 |
Unit: mm. Actual dimensions shall follow the official technical drawing issued by the manufacturer.

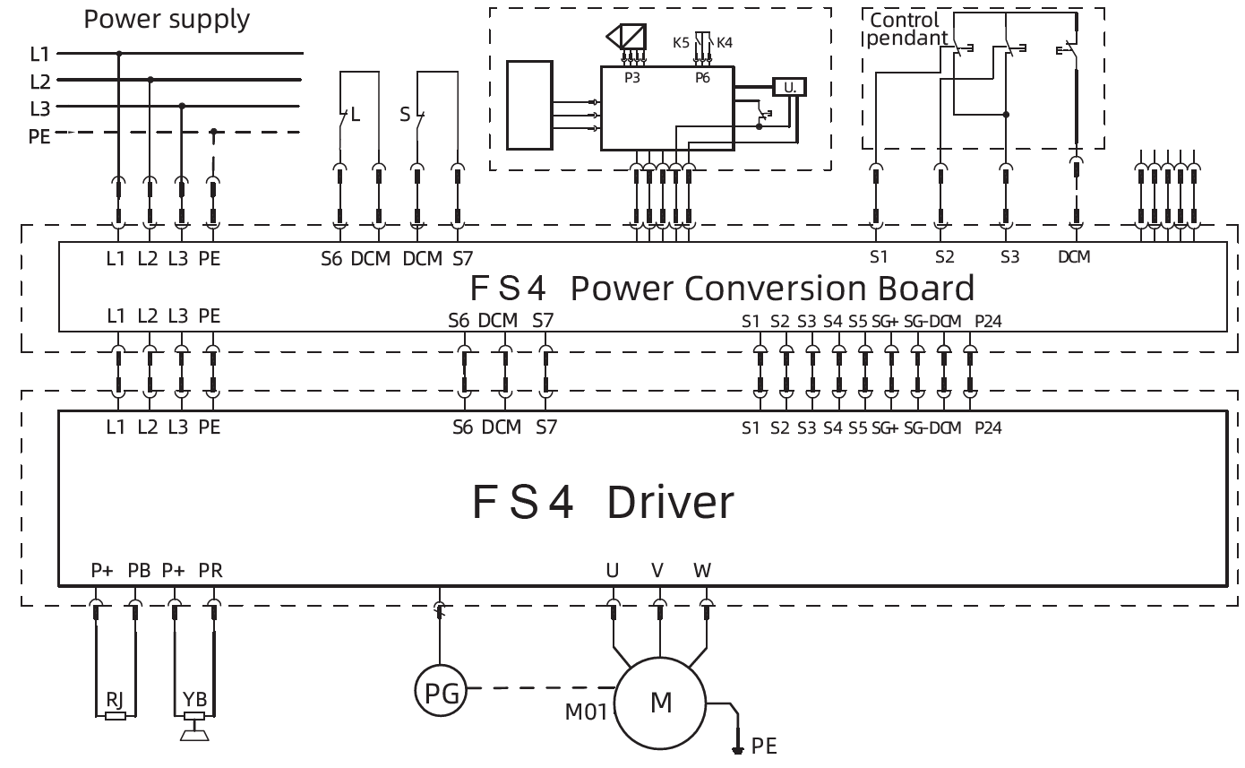

Wiring Diagram
For reference only. The actual wiring shall follow the product manual supplied with the hoist.
FULLSHARP | Multiple patents | Researched & manufactured in Taiwan | www.fullsharp.com
