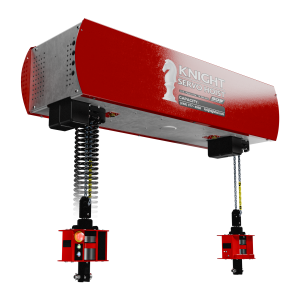

Twin Chain Servo Hoist

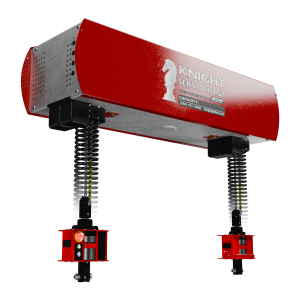

Twin Chain Servo Hoist / Dual Motor
Models: KSHTC250S-2401 | KSHTC500S-2401 | KSHTCDM700S–4000S-4803
The Knight KSHTC Twin Chain and KSHTCDM Dual Motor hoists are Intelligent Assist Devices (IAD) that let the operator position or balance a load precisely along the “Z” axis (vertical) with high speed and reliability. The design suits awkward or long parts that need to be kept under control.
Both ranges include the “SDS” (Safety Drop Stop) feature. On the KSHTC, the two chains are mechanically linked and run as a single unit. On the KSHTCDM, each motor is electronically synchronised, with the option of an LMM module with OCI or LMM with pass-through.
Knight’s servo technology lets the operator simply grip the handle and move the load, with no buttons to press, improving accuracy, responsiveness, repeatability, safety and throughput. The inherent benefits include eliminating wasted motion, shortening reaction time, and reducing inertia effects with heavy loads.
▶ See custom servo applications in the Knight Global photo gallery
Mechanical
- Speed: up to 196 ft/min [60 m/min].
- KSHTCDM – dual motor control.
- Standard chain centre distance: 24″ [609 mm] to 36″ [914 mm].
- Wider than 36″ available to special order.
- 125% safety factor.
- Fail-safe brake.
- Patented Knight chain – long service life.
- Unlimited chain length (18 ft standard).
- Fully sealed worm-gear gearbox.
- H5 duty rating (continuous duty cycle).
Software
- Programming and diagnostic port.
- Virtual travel limits.
- Configurable speed reduction zones.
- Impact limiting.
- Active damping.
- Standard Float Mode.
- Programmable overload settings.
Electrical
- 24 VDC, 2 A auxiliary supply for custom tooling (grippers, vacuum cups, sensors, lights).
- Illuminated Run/Stop button.
- 240 VAC, single phase, 50/60 Hz.
- Load sensing: payload and handle load.
- I/O capability:
- (16) inputs / (8) outputs.
- (8) inputs / (4) outputs free for external control.
- Status LEDs; illuminated green/blue push buttons.
- Fault LED; twist the Run-Stop button to release.
- Optional remote control or remote handle.
| Model Number | Capacity lbs [kg] | Max Speed fpm [mpm] | Voltage / Phase |
|---|---|---|---|
| KSHTC250S-2401 | 250 lbs [113 kg] | 196.85 fpm [60 mpm] | 240V / 1 phase |
| KSHTC500S-2401 | 500 lbs [226 kg] | Contact FULLSHARP | 240V / 1 phase |
| Model Number | Capacity lbs [kg] | Max Speed fpm [mpm] | Voltage / Phase |
|---|---|---|---|
| KSHTCDM700S-4803 | 700 lbs [317 kg] | Contact FULLSHARP | 480V / 3 phase |
| KSHTCDM1500S-4803 | 1,500 lbs [680 kg] | 123.03 fpm [37.5 mpm] | 480V / 3 phase |
| KSHTCDM2000S-4803 | 2,000 lbs [907 kg] | 41.01 fpm [12.5 mpm] | 480V / 3 phase |
| KSHTCDM4000S-4803 | 4,000 lbs [1,814 kg] | Contact FULLSHARP | 480V / 3 phase |
* Servo application overview
* SDS servo preventive maintenance
* XYZ servo system – vehicle seat installation
SDS chain replacement guide
Servo system applications
- For use with a dual-speed handle or a fixture handle.
- Ethernet programming port.
- Red illuminated Run-Stop; green FLOAT/LIFT buttons.
- Supplied with the KSAA1004 shackle.
- Ethernet programming port.
- M23 19-pin male and female connectors.
- Supplied with the KSAA1004 shackle.
- No programming required.
- Two UP/DOWN thumb paddles.
- UL Listed, CE approved.
Weight: 2.5 lbs [1.13 kg]
- No programming required.
- Two thumb paddles plus one trigger.
- UL Listed, CE approved.
Weight: 2.8 lbs [1.27 kg]
- Integrated OCI interface.
- Safety Run-Stop button.
- 9-pin D-Sub programming port.
Weight: 5.04 lbs [2.29 kg]
- Illuminated LIFT and FLOAT buttons.
- Ethernet programming port.
- Side or rear cable entry.
Weight: 3.5–6.75 lbs [1.59–3.1 kg]
- Measures wear on Knight 4 mm and 5 mm zinc-plated chain.
- Durable steel construction.
Weight: 0.87 lbs [0.39 kg]
- KDSA1010 (4 mm): 200–500 lbs capacities.
- KDSA1011 (5 mm): 350–1,000 lbs capacities.
- High-tensile steel, heat treated, zinc plated.
- Forged alloy steel, heat treated.
- Pin-operated quick connect and release.
- Maximum load: 1,500 lbs [680 kg].
- 4140 steel, heat treated to Rockwell C 38–42.
- Secured with two M6 steel pins.
- Maximum load: 1,000 lbs [453 kg].
- 4140 steel with an enlarged connection hole.
- Supplied with the KSAD1022 swivel hook.
- Maximum load: 1,000 lbs [453 kg].
Weight: 4.6 lbs [2.08 kg]
- Pneumatic brake, mounts fore or aft.
- Use as a parking brake or a drag brake.
- Replaceable brake pads.
Weight: 6.0 lbs [2.72 kg]
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C at 100% load.
Max load: 2,500 lbs [1,134 kg] | Weight: 9.5 lbs [4.31 kg]
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C at 100% load.
Max load: 1,600 lbs [725 kg] | Weight: 7.6 lbs [3.45 kg]
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -7°C to +120°C at 100% load.
Max load: 900 lbs [408 kg] | Weight: 4.5 lbs [2.04 kg]
- 19-pin military bayonet connector.
- Coils around the servo chain.
- Lengths 2–20 ft [60–610 cm].
- 19-pin military bayonet connector.
- Connects the OCI to the LMM.
- Lengths 2–15 ft [61–457 cm].
- Grey PVC, 22 AWG, 300 V.
- Straight or 90° right-angle connectors.
- Lengths 1–6 m.
- Converts 480 VAC to 240 VAC.
- For use with KSH250S–KSH1000S.
- 15 A primary and secondary breakers.
- Converts 480 VAC to 240 VAC.
- For use with KSHTCDM, KSHXY and similar.
- 25 A primary and secondary breakers.
- Powers two servo systems.
- Dual 25 A secondary breakers.
- Dual 480 VAC to 240 VAC conversion.
- Multiple adjustable height settings.
- For the KCA1018 and KCA1055.
- Floor mounted with M10×1.5 Nylock bolts.
- Mounts directly to an I-beam column.
- No drilling of the column required.
- For the KCA1018, KCA1055 and KCA1056.
- For use with the KSHXXYZ and KSHXYZR.
- Converts 480 VAC to 240 VAC.
- Two 25 A primary and secondary breakers.
