FLTP SERIES PLASTIC IN-LINE VACUUM FILTERS
In-line vacuum filters in FDA approved black nylon with transparent bowls – 1/4″ to 1-1/2″ NPT
Product Overview

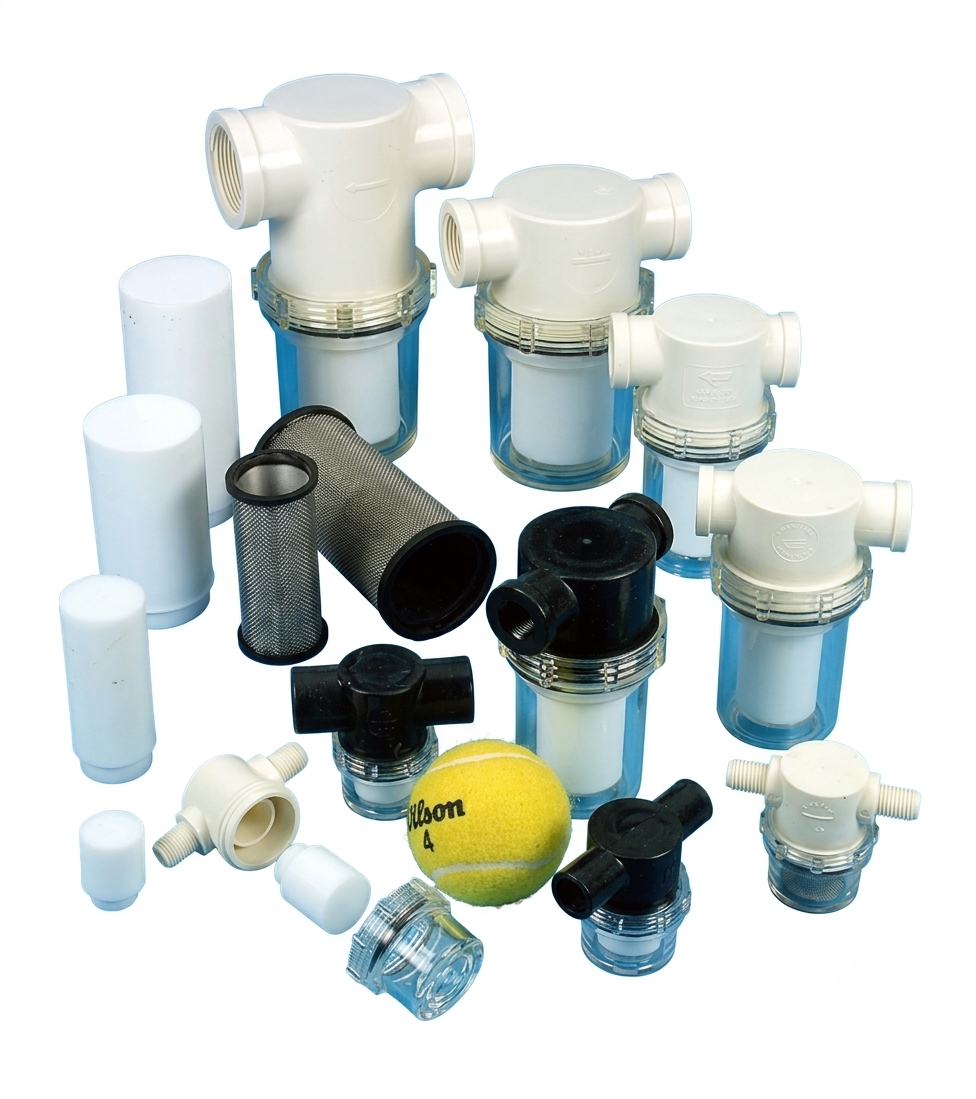

FLTP Series filter range
A great value for a quality vacuum filter that is simply the best product available for many applications.
These are absolutely great vacuum filters for use with vacuum pumps and vacuum systems. They are 100% airtight, even after repeated element changes; you can easily see when the element needs changing; they do not corrode or rust; and the element works well even on fine dust.
These filters are used to protect valves, pumps, ejectors, etc., from dust and other harmful particles. In-line filters are designed to be serviced without removing the entire unit from the line.
You can simply remove the bowl by hand and clean or change the filter element. The transparent nylon bowl allows you to easily monitor the filter condition.
ANVER vacuum filters range in size from 1/4″ to 1-1/2″ NPT and are constructed from FDA approved black nylon. If space permits, use of the longer size bowl will require fewer element changes.
Vacuum filters designed for years of reliable, leak-proof use
- FDA approved Black Nylon Body is corrosion and rust proof, and shock-proof
- Buna-N Gasket seals the bowl to the housing
- 70–140 micron polyethylene filter element
- Transparent nylon bowl shows condition of filter
- Pressure rating from full vacuum to 100 psi. Sharp pressure spikes are not recommended.
- Maximum temperature 125°F (52°C) at 100 psi
Specifications
| FLTP Series | |
|---|---|
| Parameter | Value |
| Body material | FDA approved black nylon – corrosion proof, rust proof, shock-proof |
| Bowl | Transparent nylon – shows condition of filter |
| Bowl gasket | Buna-N |
| Filter element | 70–140 micron polyethylene |
| Pressure rating | Full vacuum to 100 psi (sharp pressure spikes are not recommended) |
| Maximum temperature | 125°F (52°C) at 100 psi |
| Port sizes | 1/4″ to 1-1/2″ NPT |
Filter and Replacement Element Specifications
| FLTP Series filters, elements, gaskets and bowls | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ANVER part no. | P-Style equivalent | A [in. (mm)] | B [in. (mm)] | C [in. (mm)] | D [in. (mm)] | Filter area [in.² (cm²)] | Pipe thread (NPT) | Standard element | Special order element | Filter O-ring gasket / clear bowl |
 FLTP-1/8F |
PPSF.125-X10 (PPX10RE3) |
3.1 (78.7) | 2.4 (61) | 1.9 (48.3) | 2.0 (50.8) | 4.27 (28) | 1/8″ NPT Female | FLTPE-1 White 70–140 micron |
– | FLTP-10497 FLTPB-1 |
 FLTP-1/4M |
– | 3.1 (78.7) | 2.4 (61) | 1.9 (48.3) | 2.0 (50.8) | 4.27 (28) | 1/4″ NPT Male | FLTPE-1 White 70–140 micron |
– | FLTP-10497 FLTPB-1 |
 FLTP-1/4F |
PPSF.25-X10 (PPX10RE3) |
3.1 (78.7) | 2.4 (61) | 1.9 (48.3) | 2.0 (50.8) | 4.27 (28) | 1/4″ NPT Female | FLTPE-1 White 70–140 micron |
– | FLTP-10497 FLTPB-1 |
 FLTP-3/8M |
– | 3.1 (78.7) | 2.4 (61) | 1.9 (48.3) | 2.0 (50.8) | 4.27 (28) | 3/8″ NPT Male | FLTPE-1 White 70–140 micron |
– | FLTP-10497 FLTPB-1 |
 FLTP-3/8FS |
PPSF.375-X10 (PPX10RE3) |
3.1 (78.7) | 2.4 (61) | 1.9 (48.3) | 2.0 (50.8) | 4.27 (28) | 3/8″ NPT Female | FLTPE-1 White 70–140 micron |
– | FLTP-10497 FLTPB-1 |
 FLTP-3/8F |
– | 3.6 (91.4) | 5.1 (129.5) | 2.9 (73.6) | 4.4 (111.8) | 19 (123) | 3/8″ NPT Female | FLTPE-2 White 70–140 micron |
FLTPE-2B Blue 150–200 micron |
FLTP-10514 FLTPB-2 |
 FLTP-1/2F |
PPSF.5-X35 (PPX35RE3) |
3.6 (91.4) | 5.1 (129.5) | 2.9 (73.6) | 4.4 (111.8) | 19 (123) | 1/2″ NPT Female | FLTPE-2 White 70–140 micron |
FLTPE-2B Blue 150–200 micron |
FLTP-10514 FLTPB-2 |
| FLTP-1/2F-F |
– | 3.6 (91.4) | 5.1 (129.5) | 2.9 (73.6) | 4.4 (111.8) | 19 (123) | 1/2″ NPT Female | FLTPE-2F White 70–140 micron w/ felt element |
– | FLTP-10514 FLTPB-2 |
 FLTP-3/4F |
PPSF.75-X35 (PPX35RE3) |
3.6 (91.4) | 5.4 (137.2) | 2.9 (73.6) | 4.6 (116.9) | 19 (123) | 3/4″ NPT Female | FLTPE-2 White 70–140 micron |
FLTPE-2B Blue 150–200 micron |
FLTP-10514 FLTPB-2 |
 FLTP-1F |
PPSF1.0-X50 (PPX50RE3) |
4.9 (124.5) | 6.4 (162.6) | 4.0 (101.6) | 5.6 (142.2) | 33 (213) | 1″ NPT Female | FLTPE-3 White 70–140 micron |
– | FLTP-10538 FLTPB-3 |
 FLTP-1F/15 |
– | 4.9 (124.5) | 6.4 (162.6) | 4.0 (101.6) | 5.6 (142.2) | 33 (213) | 1″ NPT Female | FLTPE-3/15 | – | – |
 FLTP-1.5F/15 |
– | 5.2 (132.1) | 8.1 (209.9) | 4.0 (101.6) | 6.9 (175.3) | 39 (252) | 1-1/2″ NPT Female | FLTPE-4/15 | – | – |
*NOTE: ANVER Plastic Filters and Elements are Direct Replacements for P-Style filters.
**ANVER replacement elements are 1 piece while P-Style elements are 3 pieces.
32000280 Dual Filter Assembly for Vacuum Tilters and VPFL4-Series Generators
| Part number | Description |
|---|---|
 32000280 |
Filter Assembly, Handlebar Mounted, Dual 1/2″ Filters |
 A1212B |
Hose Barb, 1/2″ NPT x 1/2″ Hose |
 CLP-05-W |
Clamp, Worm for 1/2″ Hose |
| FLTP-1/2F |
Filter, 1/2″ NPT Female (Black Nylon) |
 FLTPE-2 |
Filter Element, for FLTP-3/8F, -1/2F & -3/4F (70–140 micron) |
 FLTP-1/2F-B |
Filter, 1/2″ NPT w/ FLTPE-2B Element |
 FLTPE-2B |
Filter Element, for FLTP-3/8F, -1/2F & -3/4F (150–200 micron) Blue |
 FLTP-10514 |
Filter O-Ring Gasket for 3/8″ Thru 3/4″ Plastic Filters |
Replacing the Filter Element
FLTP plastic in-line filters
Replacement of filter elements takes only a few seconds.
All filter elements can be easily cleaned or replaced by hand without removing the entire filter from the line by simply removing the filter bowl. Simply unscrew the bowl by hand. No tools are needed.
