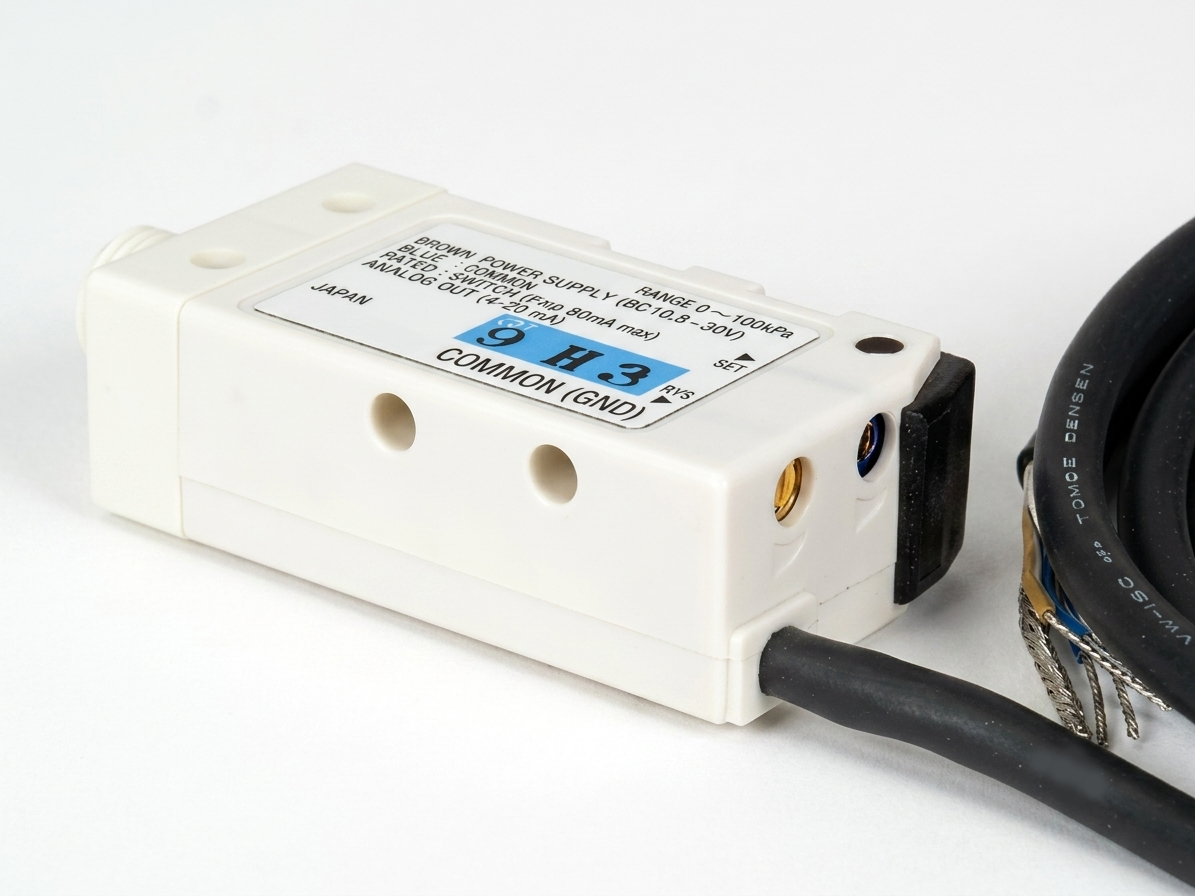

ELECTRONIC VACUUM SWITCH (JTSE)
Converts vacuum level into digital output for PLC systems and analog output for on/off control
Product Overview
JTSE
The JTSE Electronic Vacuum Switch converts the vacuum level into digital output for connection to PLC systems as well as into analog output for the on/off control. The JTSE Switch will allow continuous feedback and adjustment capability over a 0 to 29.5″ Hg range.
This switch features a PNP open collector output transistor configuration. (For NPN configuration see ANVER Pressure Switch Model JTSE-NPN.)
NOTE: ANVER standard unit is PNP.
Calculation range: -1/0 bars · Overpressure: +3 bars
The JTSE Electronic Vacuum Switch connects easily and conveniently to ANVER JB Series Vacuum Generators under the nozzle and muffler.
Specifications for JTSE Vacuum Switch
| Parameter | Value |
|---|---|
| Pressure media | Non-corrosive gases |
| Power supply | 10.8 – 30 V DC, regulated |
| Current consumption | 17 mA maximum @ 30 V DC |
| Transistor output | N.O. 28 V DC, 80 mA maximum |
| Analog output | 1 ± 0.1 V ~ 5 ± 0.1 V DC |
| Accuracy at | ±0.3% of measuring scale at constant temperature |
| Switch configuration | 1 adjustable hysteresis output – 1 analog output |
| Setting method | Adjustable by trimmer pot |
| Hysteresis | A: 0 to 15% of the set value |
| Response time | 1 ms |
| Body materials | Polyacetal and polycarbonate |
| Dielectric strength | 500 V AC, 1 minute |
| Operating temperature | -20 to +70°C (storage: -20 to +80°C) |
| Operating humidity | 35 ~ 85% RH (no condensation) |
| Electrical connection | Cable (1.5 meters long) with 4 loose leads |
| Pneumatic connection | R1/8 male with M5 female port |
| Weight | 1.87 oz. (53 grams) |
