ADJUSTABLE BRACKETS FOR SUSPENSION RODS
SBA slide bracket assemblies for 1-1/4″, 1-1/2″, 1-3/4″ and 2″ crossarms
Product Overview
Adjustable brackets for various suspension rods are available in a variety of sizes to fit most crossarms.
These brackets fit steel tubing sizes 1-1/4″, 1-1/2″, 1-3/4″ and 2″ square, and slide along the crossarm so cup positions can be set and locked wherever the load needs them.
All four sizes accept the SLSA-1 and SLSA-2 series level compensator suspensions.
Choosing a bracket – select purely by crossarm size. The A, B, C and D dimensions all grow with the tubing size; the suspension fit is the same across the range.
Specifications for Adjustable Brackets
| SBA slide bracket assemblies | |||||||
|---|---|---|---|---|---|---|---|
| Bracket number | Description | A in. (mm) | B in. (mm) | C in. (mm) | D in. (mm) | Fits tubing size in. (mm) | Weight lb (kg) |
| SBA-125 | Slide bracket assembly for 1-1/4″ beams | 3.61 (91.7) | 1.92 (48.8) | 1.27 (32.3) | 6.23 (158.2) | 1.25 × 1.25 (31.75 × 31.75) | 0.82 (0.37) |
| SBA-150 | Slide bracket assembly for 1-1/2″ beams | 3.86 (98.0) | 2.17 (55.1) | 1.52 (38.6) | 6.43 (163.3) | 1.50 × 1.50 (38.1 × 38.1) | 0.89 (0.40) |
| SBA-175 | Slide bracket assembly for 1-3/4″ beams | 4.11 (104.4) | 2.42 (61.5) | 1.77 (45.0) | 6.67 (169.4) | 1.75 × 1.75 (44.5 × 44.5) | 0.94 (0.43) |
| SBA-200 | Slide bracket assembly for 2″ beams | 4.36 (110.7) | 2.67 (67.8) | 2.02 (51.3) | 6.92 (175.8) | 2.00 × 2.00 (50.8 × 50.8) | 0.97 (0.44) |
All four brackets take the SLSA-1 and SLSA-2 series level compensator suspensions.
Specifications for the Adapter
| Adapter number | Description |
|---|---|
 212 00 679 |
Guide, spacer for the SLSA-1 series |
The guide spacer takes up the difference between the SLSA-1 rod and the bracket bore – needed when fitting an SLSA-1 suspension rather than an SLSA-2.
Vacuum Assembly Set-Up

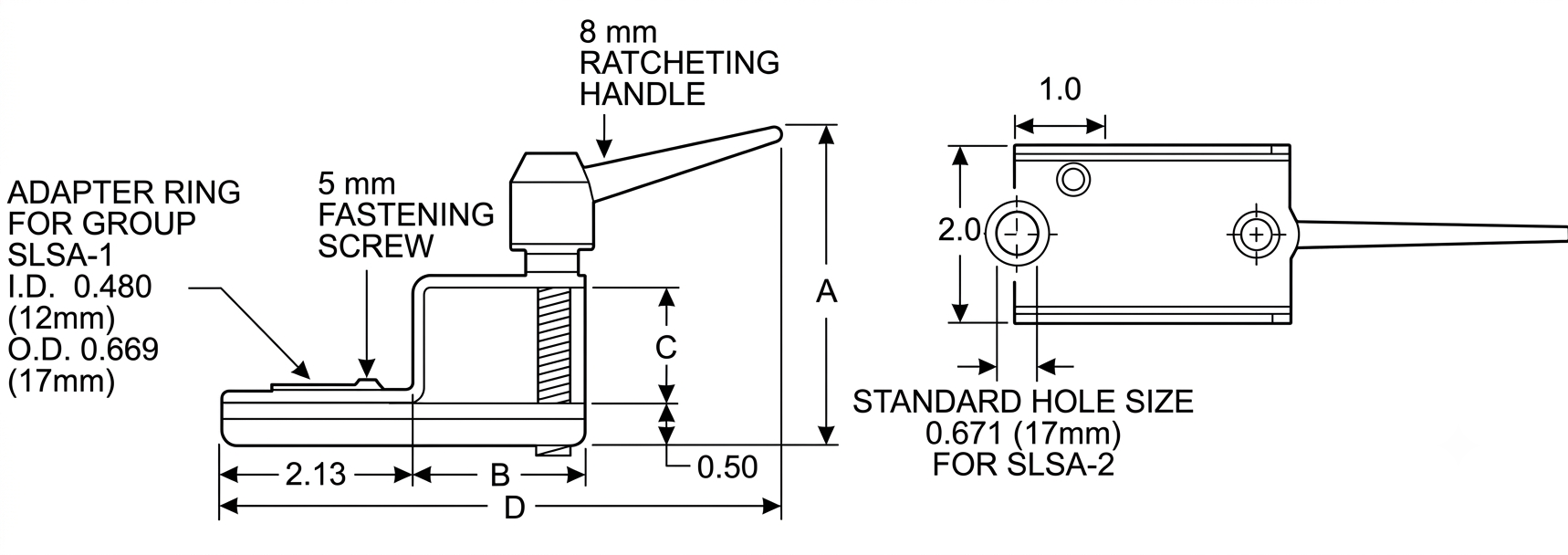

Exploded view – adjustable bracket with suspension
Typical 1.75″ assembly
Typical 2″ assembly
Suspension brackets
Contact FULL-SHARP with your crossarm size and the SLSA series you are using, and we will confirm the bracket and whether the guide spacer is needed.
