SLSA-2 SPRING LOADED VACUUM CUP SUSPENSION ASSEMBLIES
Level compensators with G 1/8″ male thread – rotating and non-rotating, 10 to 70 mm travel
Product Overview

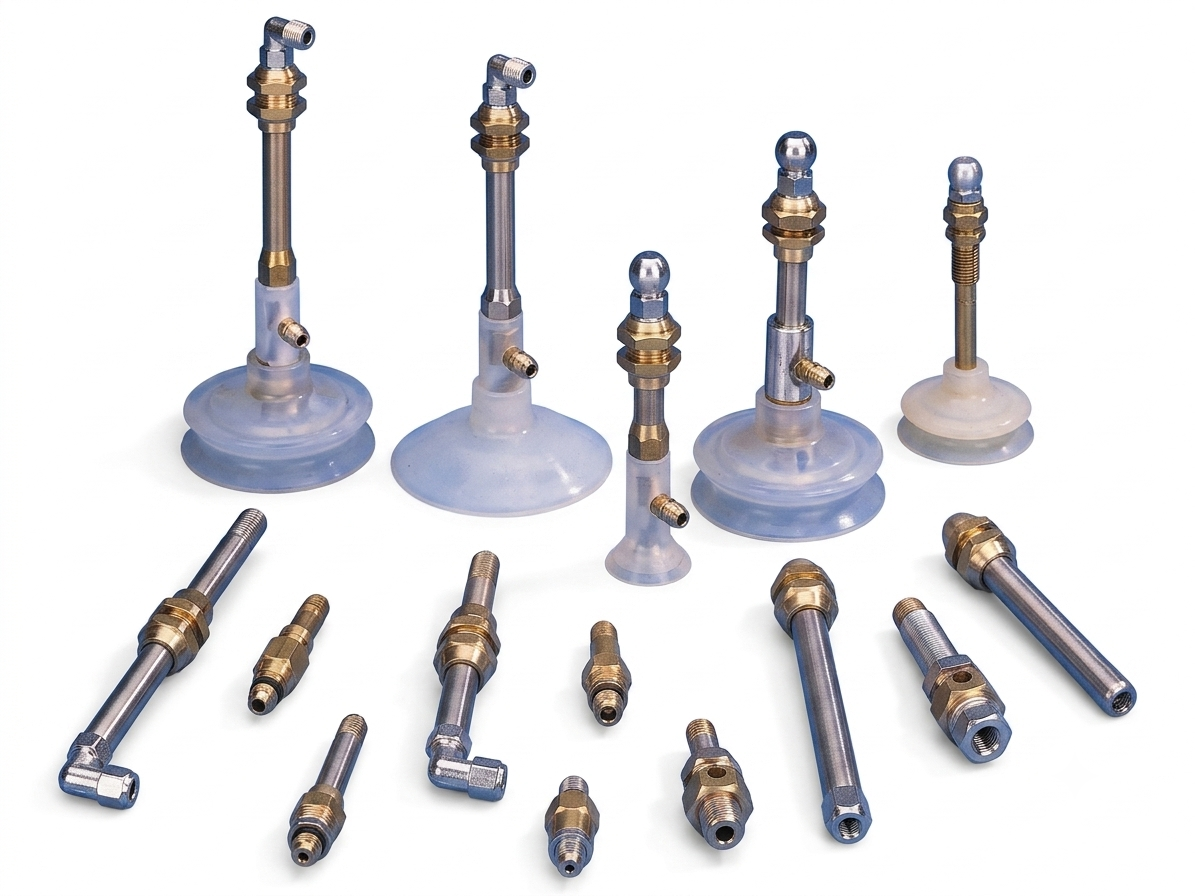

ANVER vacuum suction cups can be mounted to most vacuum systems using spring loaded suspension assemblies. These are high quality, well finished assemblies designed for high speed automation applications.
Adjustable bulkhead fittings mount to almost any lifting frame, while a variety of tube fittings connect the assembly to the vacuum generating system. These mounting systems act as extensions while providing support when handling a load.
The SLSA-2 Series connects to a vacuum system via a G 1/8″ NPS male thread (which fits into 1/8″ NPT). For 5 mm or 10-32 UNF threads, use the SLSA-1 Series instead.
Custom adaptation – these suspensions can be adapted with tube fittings, mini vacuum generators, sensing valves and custom adapters. Contact FULL-SHARP for assistance.
Advantages of Suspension Assemblies
01 – Less machine indexing
Reduces machine indexing when picking material up from a stack.
02 – Height compensation
Compensates for variations in object height and gives a soft touch attach.
03 – Less shock and noise
Minimises shock and noise to both the object and the machine.
04 – Longer cup life
Provides consistent cup pressure on each pick-up, which increases cup life.
05 – Simple interface
An easy way for the vacuum cup and vacuum lines to interface with machine tooling.
06 – Long travel available
Travel up to 70 mm – considerably more than the SLSA-1 series, for deep stacks and uneven loads.
Materials
| Component | Rotating | Non-rotating |
|---|---|---|
| Suspension tube | Nickel plated steel | Nickel plated steel |
| Springs | Stainless steel | Stainless steel |
| Bulkhead thread | Nickel plated brass | Stainless steel |
| Panel nuts | Nickel plated brass | Stainless steel |
Suspension Assemblies – Group 2 and 3 Fittings
| SLSA-2 series suspension assemblies | |||||||
|---|---|---|---|---|---|---|---|
| Part number | Version | Connection thread size | Travel in. (mm) | Height in. (mm) | Required panel hole diameter in. (mm) | Maximum panel thickness in. (mm) | Weight (grams) |
| SLSA-210NR | Non-rotating or rotating | G 1/8″ male | 0.39 (10) | 1.88 (48) | 0.63 (16) | 0.62 (16) | 70.9 |
| A-3350069 | Rotating | G 1/8″ male | 0.79 (20) | 3.15 (80) | 0.63 (16) | 1.06 (27) | 76.0 |
| SLSA-230NR | Non-rotating or rotating | G 1/8″ male | 1.18 (30) | 3.45 (88) | 0.63 (16) | 0.62 (16) | 92.1 |
| SLSA-250NR | Non-rotating or rotating | G 1/8″ male | 1.97 (50) | 4.99 (127) | 0.63 (16) | 0.62 (16) | 113.4 |
| SLSA-270NR | Non-rotating or rotating | G 1/8″ male | 2.76 (70) | 6.60 (168) | 0.63 (16) | 0.62 (16) | 136.5 |
All five take the same adjustable aluminium bracket plates and the same 0.63 in. (16 mm) panel hole. Only the A-3350069 differs on maximum panel thickness, at 1.06 in. (27 mm).
Extension Assemblies – VX1418 Series
| SLSA-2 series vacuum cup extension assemblies | |||||
|---|---|---|---|---|---|
| Part number | Connection thread size | Height in. (mm) | Required panel hole diameter in. (mm) | Maximum panel thickness in. (mm) | Item weight oz. (grams) |
| VX1418-100-25 | G 1/8″ female – G 1/4″ male | 1.00 (25) | 0.52 (13) | 0.5 (12.7) | 1.02 (29) |
| VX1418-200-51 | G 1/8″ female – G 1/4″ male | 2.00 (51) | 0.52 (13) | 1.5 (38.1) | 1.45 (41) |
| VX1418-300-76 | G 1/8″ female – G 1/4″ male | 3.00 (76) | 0.52 (13) | 2.5 (63.5) | 1.78 (51) |
Extensions add reach without spring travel. Note the maximum panel thickness rises with height – the 3 in. version accepts a 2.5 in. thick plate.
Tube Fittings
Tube fittings are purchased separately to connect the spring loaded suspension assembly to the vacuum hose. They are available in barbed, push-in and compression connections, in straight, elbow and tee configurations, and accept tubes with standard inside and outside diameters. All SLSA-2 fittings use a 1/8″ NPT female connection thread.
| Tube fittings for SLSA-2 series assemblies | |||||
|---|---|---|---|---|---|
| Part number | Tube I.D. in. (mm) | Tube O.D. in. (mm) | L in. (mm) | H in. (mm) | Item weight oz. (g) |
| Barbed fittings | |||||
| BTC2-14S – straight | 0.175 (4.44) | – | 0.55 (14) | 0.83 (21) | N/A |
| BTC2-38S – straight | 1/4 (6.35) | – | 0.55 (14) | 1.10 (28) | 0.511 (14.5) |
| BTC2-14E – elbow | 0.175 (4.44) | – | 0.63 (16) | 0.51 (13) | 0.494 (14) |
| BTC2-38E – elbow | 1/4 (6.35) | – | 0.83 (21) | 0.51 (13) | 0.564 (16) |
| BTC2-14T – tee | 0.175 (4.44) | – | 1.26 (32) | 0.51 (13) | 0.511 (14.5) |
| BTC2-38T – tee | 1/4 (6.35) | – | 1.69 (43) | 0.51 (13) | 0.582 (16.5) |
| BTC2-14BT – branch tee | 0.175 (4.44) | – | 0.63 (16) | 0.83 (21) | N/A |
| BTC2-38BT – branch tee | 1/4 (6.35) | – | 0.83 (21) | 1.10 (28) | N/A |
| Push-in fittings | |||||
| PTC2-14S – straight | – | 1/4 (6.35) | 0.51 (13) | 0.98 (25) | 0.388 (11) |
| PTC2-516S – straight | – | 5/16 (7.94) | 0.51 (13) | 1.14 (29) | N/A |
| PTC2-14E – elbow | – | 1/4 (6.35) | 1.18 (30) | 0.94 (24) | 0.423 (12) |
| PTC2-516E – elbow | – | 5/16 (7.94) | 1.18 (30) | 1.06 (27) | N/A |
| PTC2-14T – tee | – | 1/4 (6.35) | 1.42 (36) | 0.94 (24) | 0.441 (12.5) |
| PTC2-5/16T – tee | – | 5/16 (7.94) | 1.81 (46) | 1.18 (30) | 0.529 (15) |
| Compression fittings | |||||
| TC2-14S – straight | 0.175 (4.44) | 1/4 (6.35) | 0.55 (14) | 1.02 (26) | N/A |
| TC2-14E – elbow | 0.175 (4.44) | 1/4 (6.35) | 1.18 (30) | 0.98 (25) | N/A |
Barbed and compression fittings are sized on tube inside diameter; push-in fittings on tube outside diameter. ANVER PC series polyurethane tubing is the recommended match.
Thread warning – a BSPP male thread will screw into a female NPT port with Teflon tape, but the joint may still leak and is not recommended. Use the correct thread form, or an adapter fitting from the table below.
Additional Adapter Fittings
| Adapter fittings for SLSA-2 assemblies | ||||||
|---|---|---|---|---|---|---|
| Part number | What it does | Connection thread size | Thru hole diameter in. (mm) or thread | Hex size in. (mm) | L – height added in. (mm) | H – height in. (mm) |
| HS6 series – screw onto the HS6 fitting | ||||||
| HS6-18F | Gives a 1/8″ NPT female port | M6 female – 1/8″ NPT female | 0.2 (5) | 0.51 (13) | 0.51 (13) | – |
| HS6-18F-G | Allows a direct screw into the SLSA-2 suspensions | M6 female – G 1/8″ female | 0.2 (5) | 0.51 (13) | 0.51 (13) | – |
| HS6-14F | Allows a direct screw into the SLSA-3 suspensions | M6 female – 1/4″ NPT female | 0.2 (5) | 0.63 (16) | 0.63 (16) | – |
| HS6-14F-G | Gives a G 1/4″ female port | M6 female – G 1/4″ female | 0.2 (5) | 0.67 (17) | 0.63 (16) | – |
| HS6-18M | Gives a male 1/8″ NPT mount | M6 female – 1/8″ NPT male | 0.2 (5) | 0.51 (13) | 0.17 (4.3) | 0.47 (12) |
| HS6-18M-G | Gives a male G 1/8″ mount | M6 female – G 1/8″ male | 0.2 (5) | 0.56 (14) | 0.22 (5.6) | 0.51 (13) |
| HS6-14M | Gives a male 1/4″ NPT mount | M6 female – 1/4″ NPT male | 0.2 (5) | 0.63 (16) | 0.22 (5.5) | 0.63 (16) |
| HS6-14M-G | Gives a male G 1/4″ mount | M6 female – G 1/4″ male | 0.2 (5) | 0.63 (16) | 0.26 (6.4) | 0.63 (16) |
| Thread converters and double-ended connectors | ||||||
| HS18G-18M | G 1/8″ female to 1/8″ NPT male | 1/8″ NPT male – G 1/8″ female | 0.21 | 0.51 | 0.39 | 0.71 |
| HSHN5 | Double male 5 mm thread connector | M5 male – M5 male | 0.09 (2.3) | 0.31 (8.0) | 0.18 (4.6) | 0.45 (11.0) |
| HS5-5F | Double female 5 mm thread connector | M5 female – M5 female | 0.17 (4.3) | 0.31 (8) | – | 0.43 (11.0) |
| HS1032-1032F | Double 10-32 UNF thread connector | 10-32 UNF female – 10-32 UNF female | 0.16 (4) | 0.31 (8) | – | 0.37 (9.5) |
| HS18-18F | Screws directly into the SLSA-2 suspensions | 1/8″ NPT female – 1/8″ NPT female | 1/8″ NPT female | 0.56 (14.2) | 0.75 (19) | – |
| HS18G-18F-G | Screws directly into the SLSA-2 suspensions | G 1/8″ female – G 1/8″ female | G 1/8″ female | 0.56 (14.2) | 0.75 (19) | – |
All adapter fittings are electroless nickel plated brass.
Thread note – the “G” thread is also known as BSPP, and is commonly used worldwide for vacuum applications.
Other sizes – the SLSA-1 series is the next smaller suspension (M5 / 10-32 UNF female); the SLSA-3 series takes the 1/4″ NPT fittings.
