Description
Pneumatic Handling Equipment
Pneumatic Jib Crane
The pneumatic jib crane is built around ergonomic principles and high efficiency, letting the operator move loads safely and quickly while minimising physical effort. A twin-cable balance structure, air-controlled lifting and precise rotation give stable, accurate load handling. Because the equipment balances the load weight itself, lifting and lowering can be done gently and precisely.

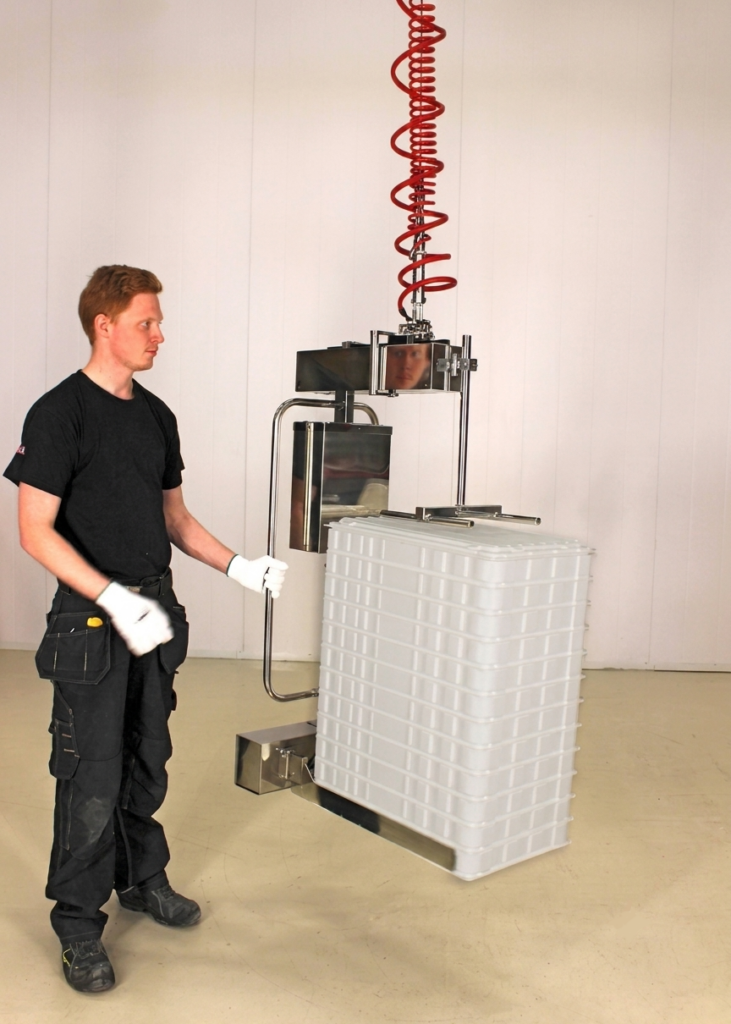

A range of end effectors can be fitted — vacuum cups, mechanical grippers, magnets or custom tooling — which opens the system up to a wide range of industries.
| Capacity | Up to 200 kg |
| Maximum reach | 4,000 mm |
| Maximum rotation | 360° |
| Vertical lifting stroke | 2,000 mm |
| Air supply | Dry, oil-free, min 6–7 kg/cm² |
| Model | Capacity | Arm length | Lift height |
|---|---|---|---|
| FL80 | 80 kg | 3–4 m | 2 m |
| FL200 | 200 kg | 3 m | 2 m |
Up to 200 kg
Self-balancing load
360° rotation
Adjustable stop pin
Air-powered
Safe in hazardous areas
Modular tooling
Vacuum, gripper or magnet
Installation
Mounting Options

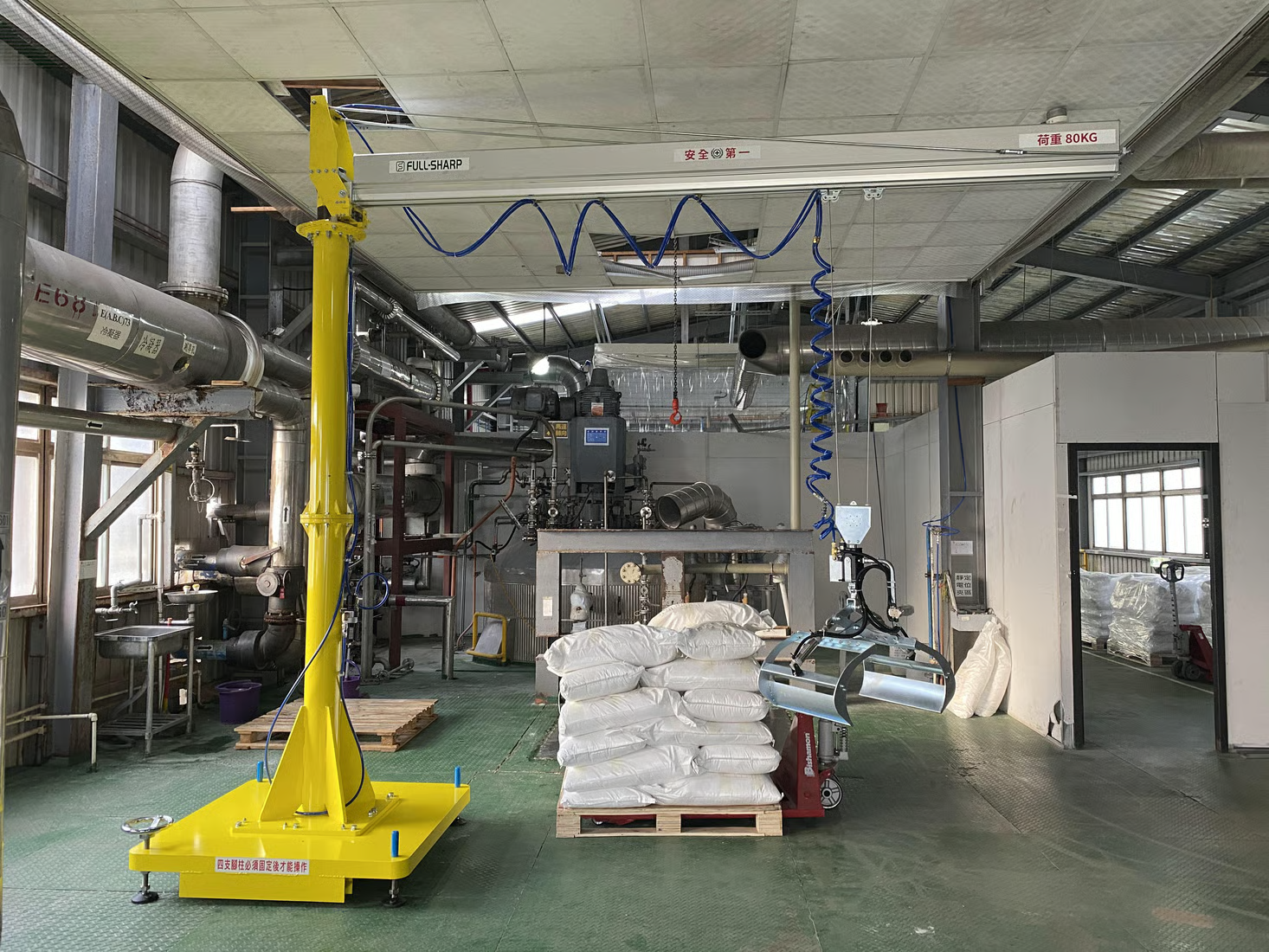

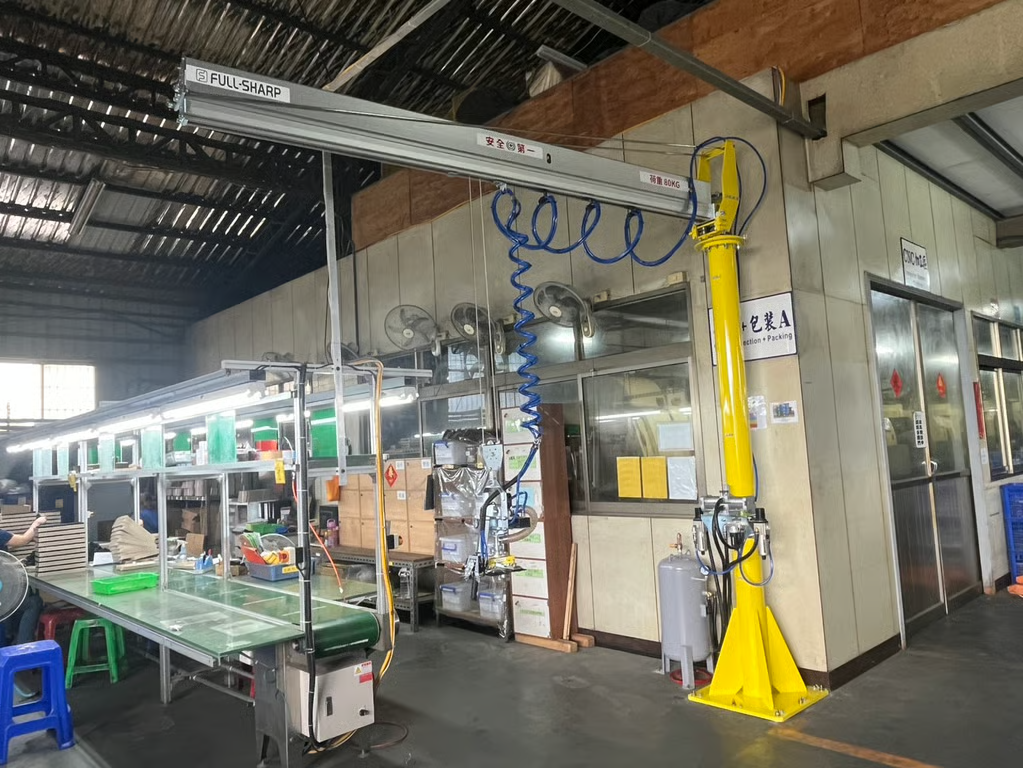

Column MountedStands on its own fixed base, so no load is transferred to the building structure.
Overhead MountedSuspended from the roof structure, keeping the floor completely clear beneath.

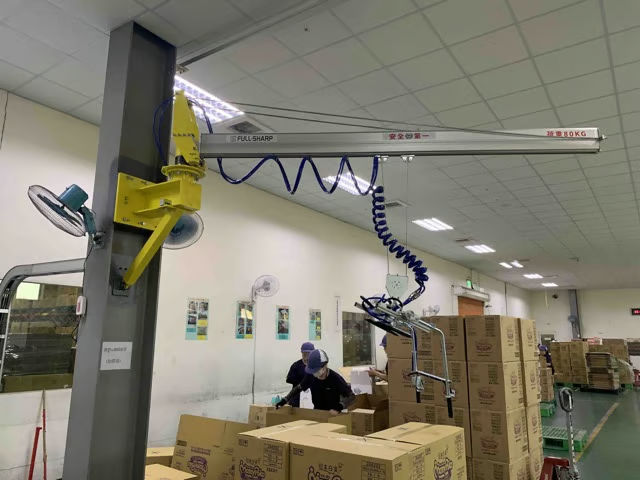

Wall MountedFixed to an existing column or wall where floor space is at a premium.
Operator interface
Control Handle Options
Manual speed adjustment

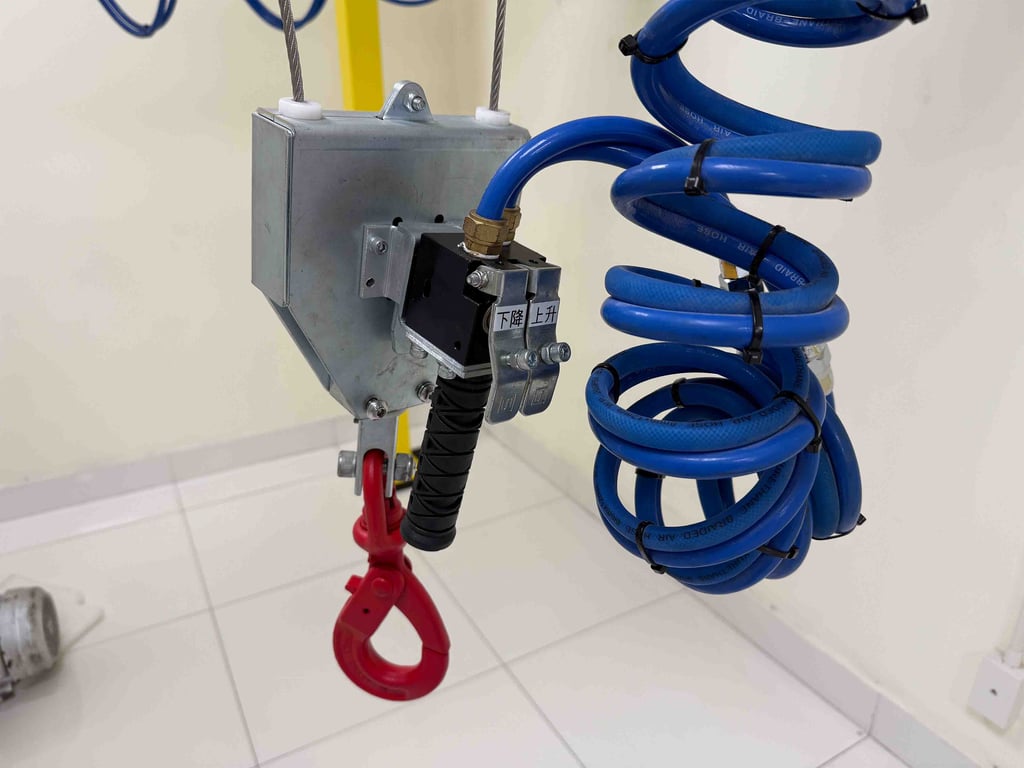

Push-Button Handle
A simple plug-in handle that can be detached and held separately during operation, or used with other equipment.
Twist to set speed manually

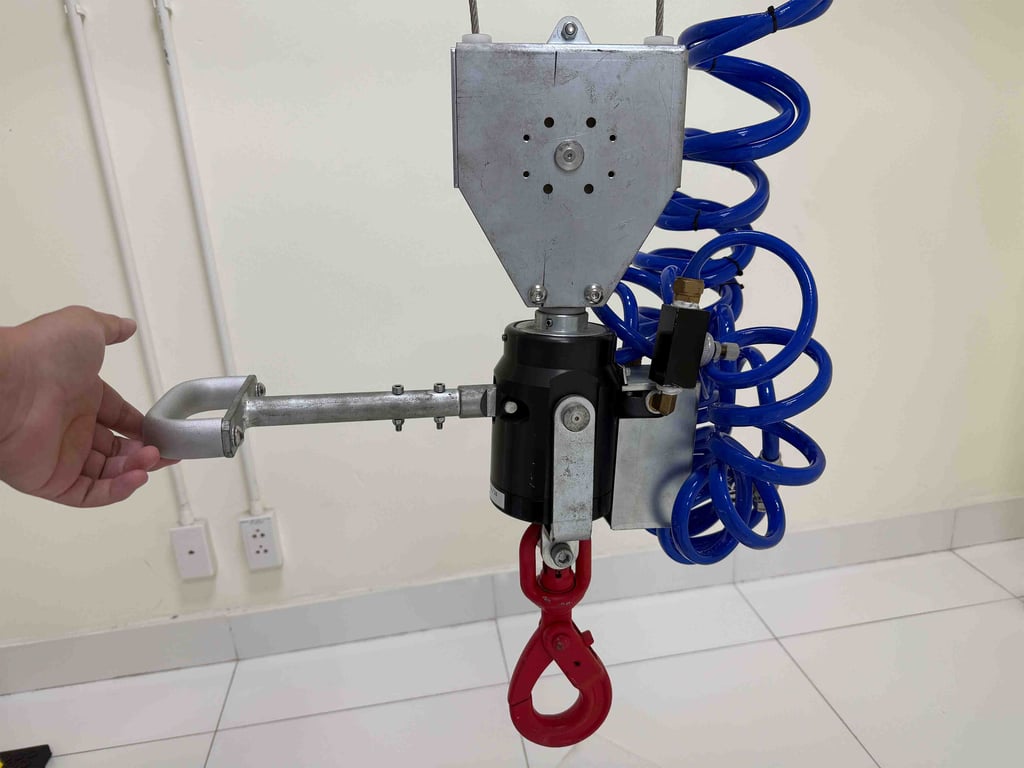

Force-Sensing Handle
Lifting and lowering speed follows the pressure applied by the operator’s hand — light enough to operate with a single finger.
What it’s made of
Key Components

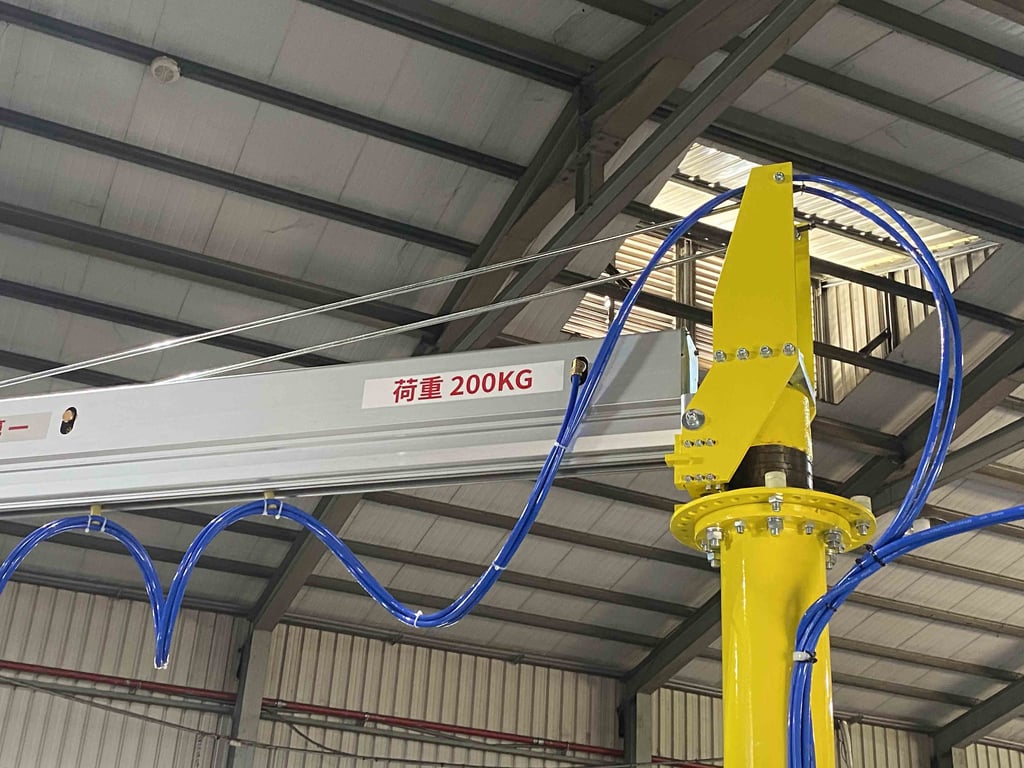

360° Rotation AxisOne-piece cast axis with an adjustable stop pin. We recommend setting 270° so the air hose isn’t over-twisted.

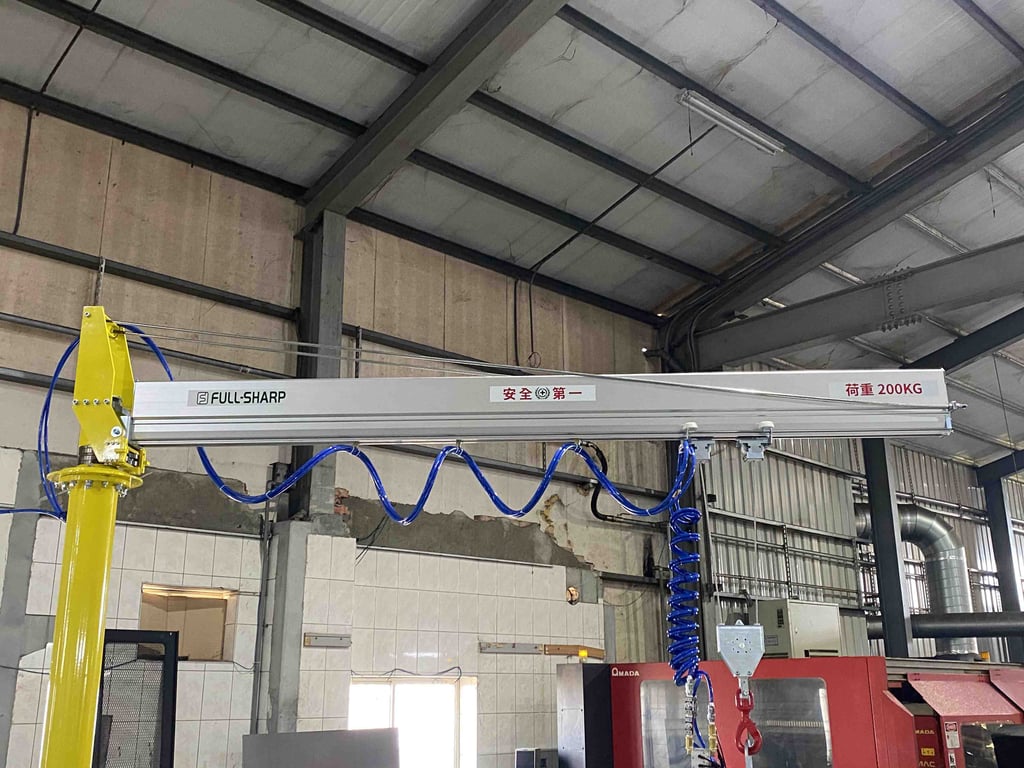

Aluminium HousingAluminium body with air-only operation, suited to cleanroom environments — no dust or sparks.

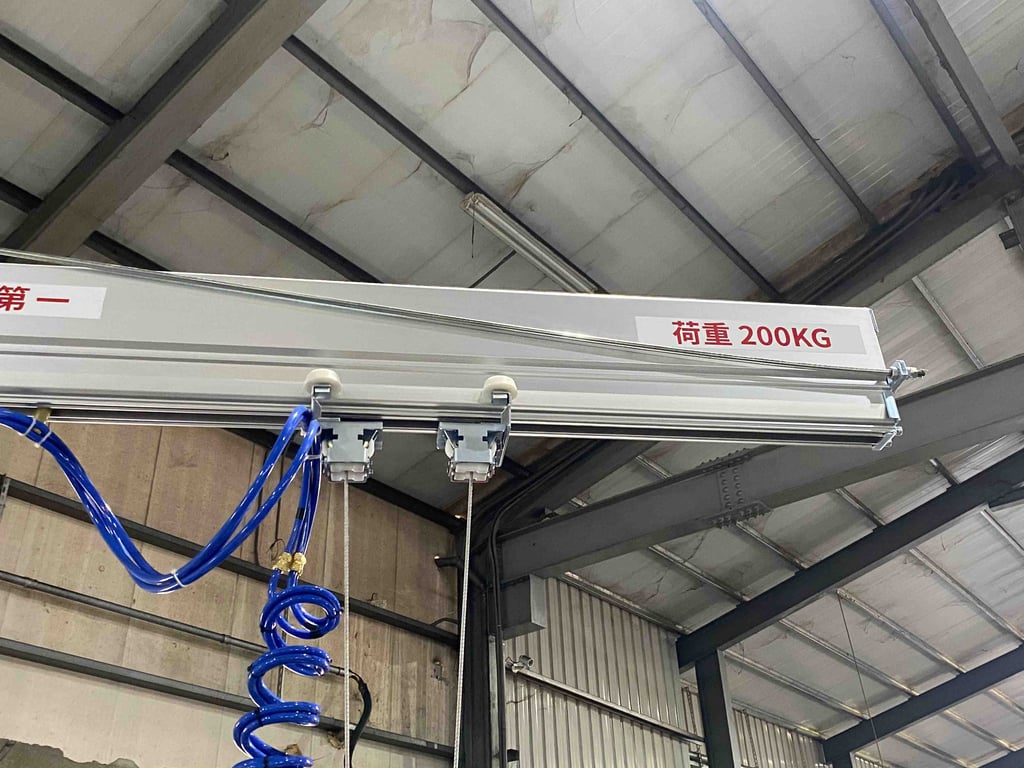

Aluminium Slide RailRail and trolley pair perfectly with the pneumatic arm for light, accurate manual travel under load.

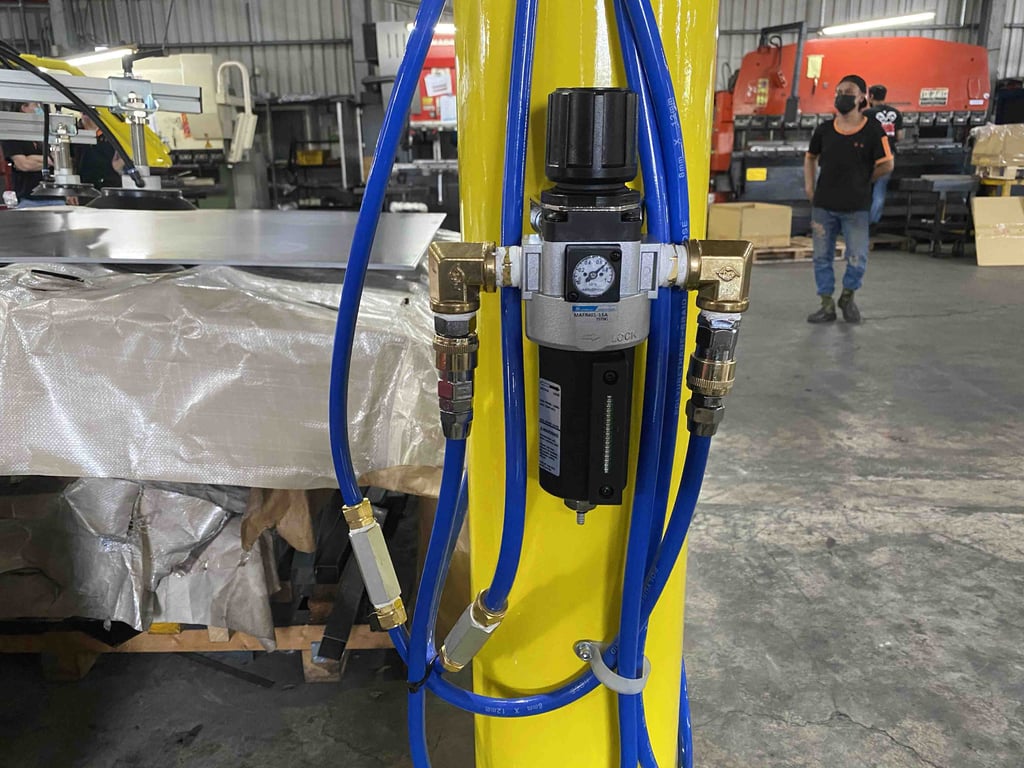

Air Filter RegulatorGauge and adjustment knob built in. Removes water, dust and contaminants to protect the pneumatics.

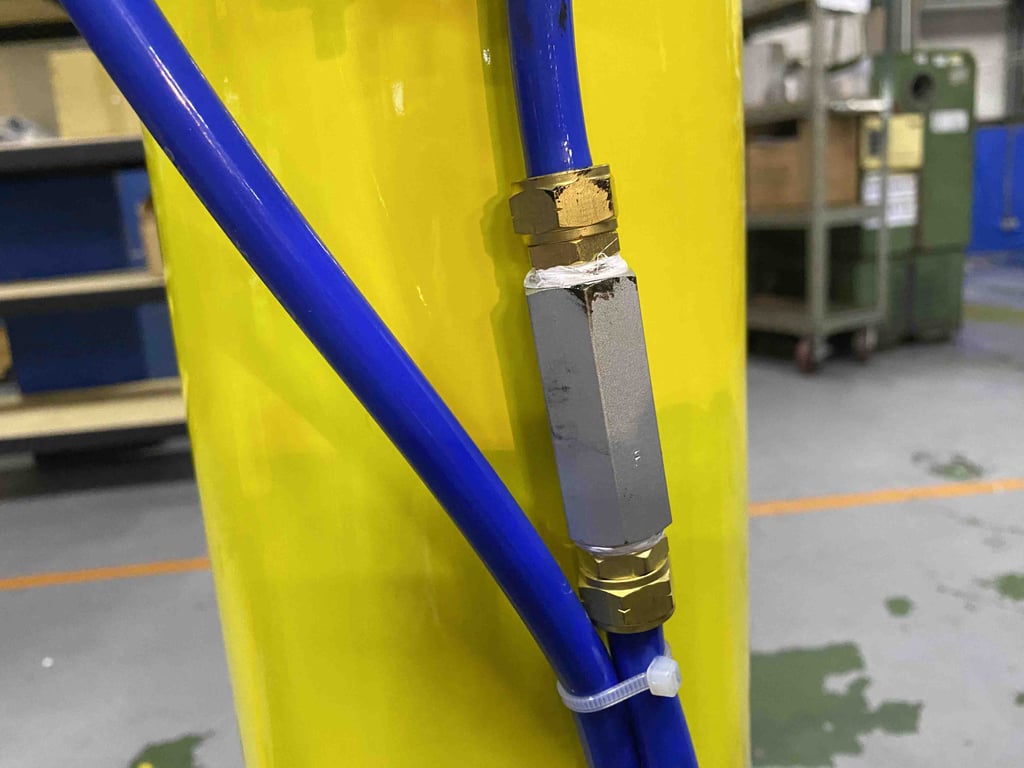

Check ValveStops back-flow and holds pressure steady at the load when lifting, protecting filters, hoists and valves.

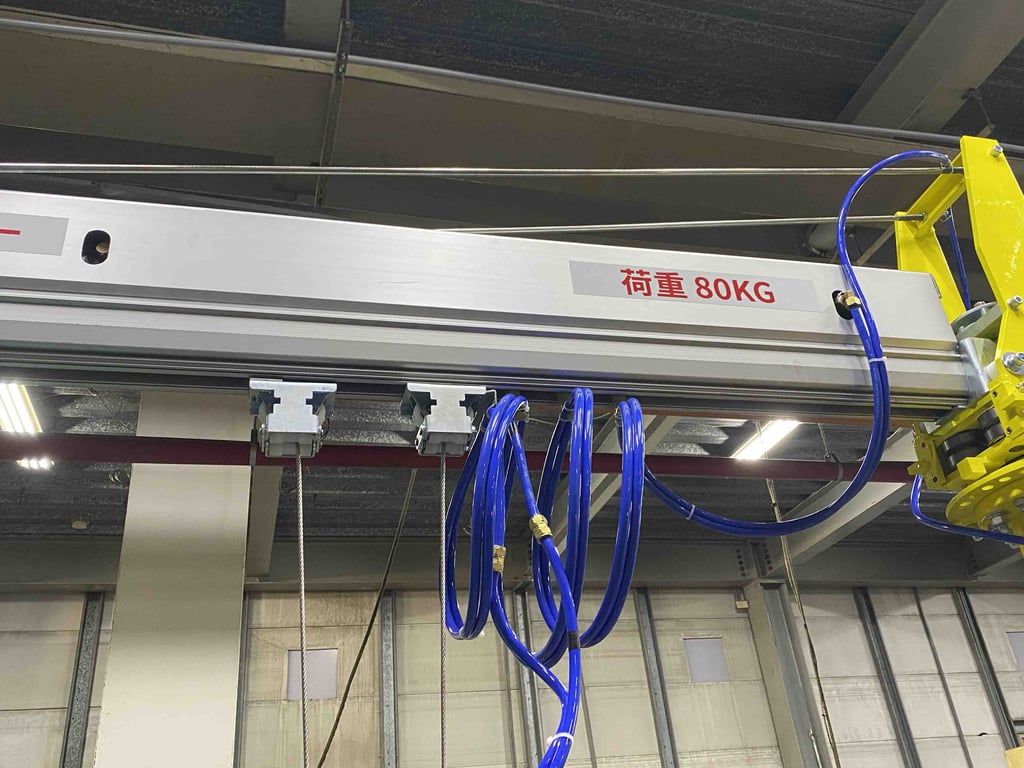

Braided PU Air HoseKink-resistant and abrasion-resistant, rated above standard PU hose and long-lasting under extension.
Why choose it
Key Advantages
Inherently safe
The twin-cable mechanism keeps the load balanced, reducing the risk of tipping or dropping.
Wide range of environments
Usable in flammable or explosive atmospheres — chemicals, pharmaceuticals, oil and gas, paint and printing ink.
Aluminium exterior
A solid aluminium housing suited to heavy industrial operating conditions.
Precise movement
Easy and accurate to position, even with heavy loads on the tool.
Operator-friendly
Ergonomic design that reduces fatigue and raises productivity across a shift.
Low running cost
Energy-efficient with low maintenance requirements and optimised operating cost.
Modular design
Straightforward to fit purpose-built end effectors for a specific part or process.
Higher throughput
Shorter handling cycles and less downtime on the line.
