Pneumatic Handling Equipment
Overhead Light Crane System
The overhead light crane system is built around ergonomic principles and high efficiency, letting the operator move loads safely and quickly while minimising physical effort. A twin-cable balance structure and air-controlled lifting give stable, accurate load handling. Because the equipment balances the load weight itself, lifting and lowering can be done gently and precisely.
A range of end effectors can be fitted — vacuum cups, mechanical grippers, magnets or custom tooling — which opens the system up to a wide range of industries.
| Capacity | Up to 200 kg |
| Maximum length | 4,000 mm |
| Vertical lifting stroke | 2,000 mm |
| Air supply | Dry, oil-free, min 7 kg/cm² |
Up to 200 kg
Self-balancing load
2 m lifting stroke
Length to 4,000 mm
Air-powered
Dry, oil-free supply
Modular tooling
Vacuum, gripper or magnet
Installation
Mounting Options
Gantry MountedFitted to a gantry crane so the system covers the full working area beneath it.
Runway Rail MountedTravels along the runway rail, giving reach the full length of the line.
Bridge Rail MountedHung from the cross rail for full two-axis coverage of the work cell.
Operator interface
Control Handle Options
Manual speed adjustment

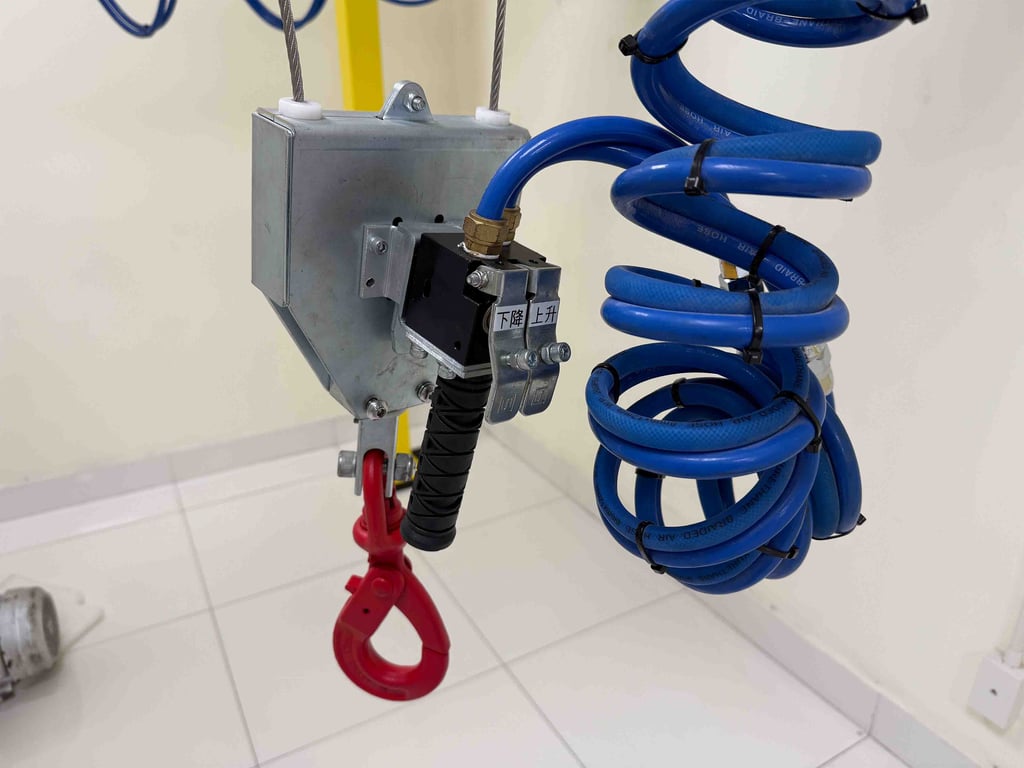

Push-Button Handle
A simple plug-in handle that can be detached and held separately during operation, or used with other equipment.
Twist to set speed manually

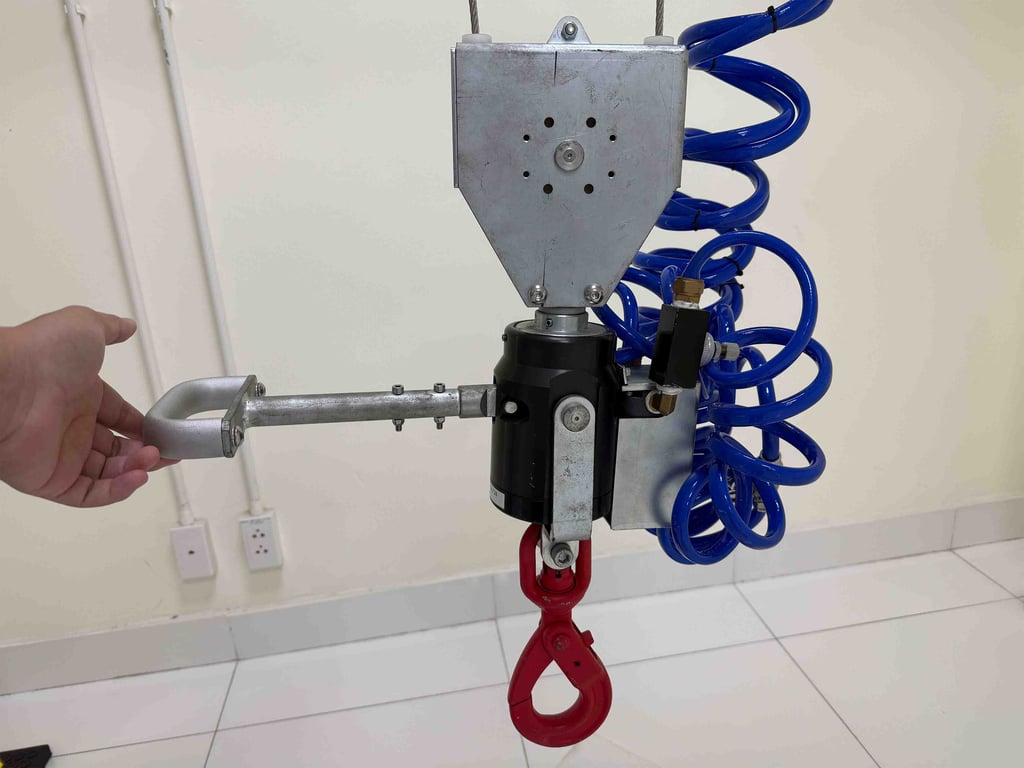

Force-Sensing Handle
Lifting and lowering speed
