Vacuum Cup Materials

The standard materials are Nitrile and Silicone (as noted below each part number). For more information on the materials, see the cup materials page.

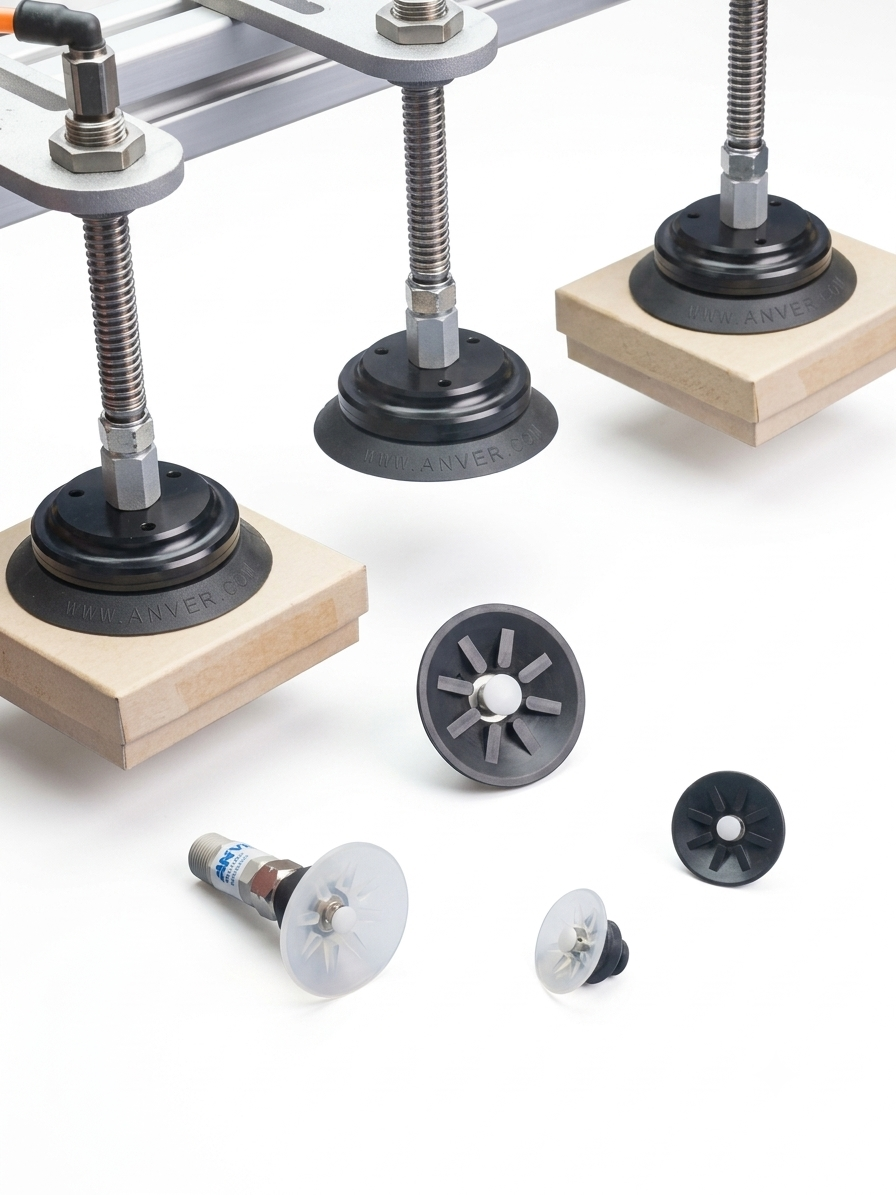

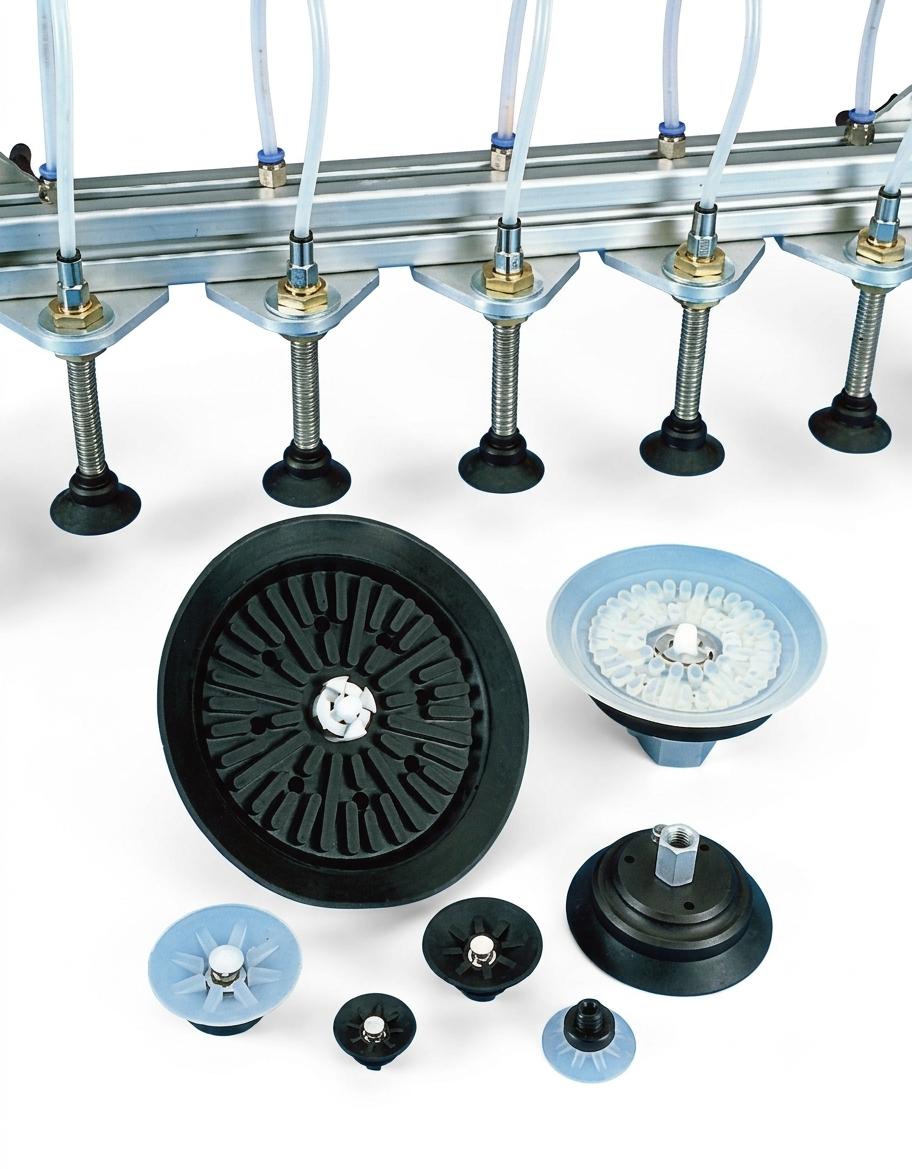

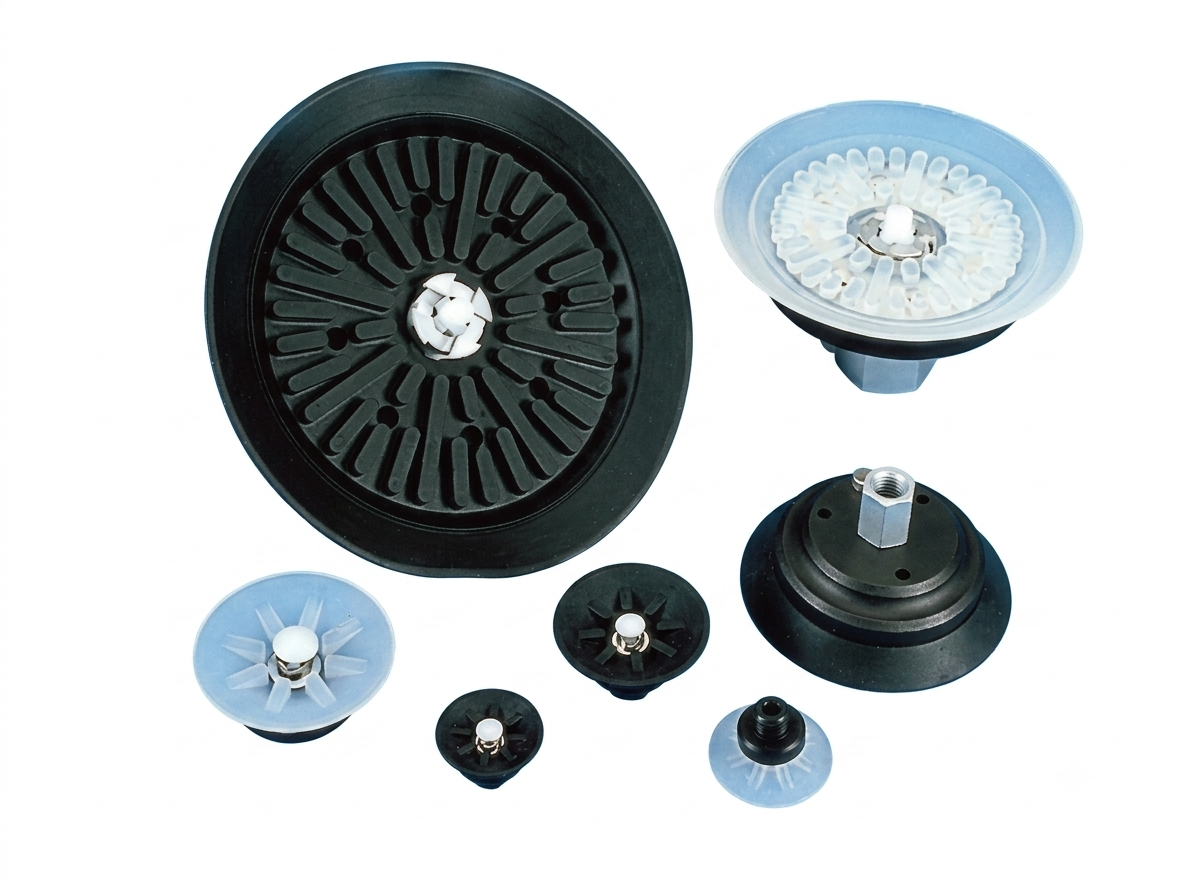

F30 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F30-NEO/VALVE (Nitrile)	A-3150049 31.50.049 F30-2.10.02UV	G 1/8″ male M5 female	1.25 (31.6)	0.40 (10.0)	3.11 (1.41)	7.00 (3.18)
F30-SIT/VALVE (Translucent silicone)	A-3150049S 31.50.049S F30-2.20.02UV	G 1/8″ male M5 female	1.25 (31.6)	0.40 (10.0)	3.11 (1.41)	7.00 (3.18)

Fitting & valve for F30 cups

Item	Part numbers	Notes	Suspensions
20-30 CONNECTION PLATE	A-3150141 31.50.141	For SLSA-1 Suspensions, use the HSHN5 Double Male 5 mm Adapter. For SLSA-2 Suspensions, use the HS18G-18FG Double Female G 1/8″ Adapter.
30 BUTTON VALVE	A-3150055 31.50.055	The 30 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

F40 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F40-NEO/VALVE (Nitrile)	A-3150050P 31.50.050P F40-2.30.04UV	G 1/8″ female	1.66 (42.1)	0.80 (21.0)	4.89 (2.22)	11.00 (4.99)
F40-SIT/VALVE (Translucent silicone)	A-3150050S 31.50.050S F40-20.20.04UV	G 1/8″ female	1.66 (42.1)	0.80 (21.0)	4.89 (2.22)	11.00 (4.99)

Fitting & valve for F40 cups

Item	Part numbers	Notes	Suspensions
40 CONNECTION PLATE	A-3150143 31.50.143	The 40 Connection Plate uses a 40 Locking Spacer. It allows you to screw directly into any of the SLSA-2 Suspensions that have a male G 1/8″ thread.
40 BUTTON VALVE	A-3150056 31.50.056	The 40 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

F50 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F50-NEO/VALVE (Nitrile)	A-3150051P 31.50.051P F50-2.30.05UV	G 1/8″ female	2.10 (52.8)	1.10 (27.0)	9.33 (4.23)	21.00 (9.53)
F50-SIT/VALVE (Translucent silicone)	A-3150051S 31.50.051S F50-2.10.05UV	G 1/8″ female	2.10 (52.8)	1.10 (27.0)	9.33 (4.23)	21.00 (9.53)

Fitting & valve for F50 cups

Item	Part numbers	Notes	Suspensions
50 CONNECTION PLATE	A-3150145 31.50.145	The 50 Connection Plate uses a 50 Locking Spacer. It allows you to screw directly into any of the SLSA-2 Suspensions that have a male G 1/8″ thread.
50 BUTTON VALVE	A-3150057 31.50.057	The 50 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

F75 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F75-NEO/VALVE (Nitrile)	A-3150078P 31.50.078P F75.30.07UV	G 1/8″ female	3.02 (76.5)	0.60 (14.0)	26.67 (12.10)	60.00 (27.22)
F75-SIT/VALVE (Translucent silicone)	A-3150078S 31.50.078S F75.20.07UV	G 1/8″ female	3.02 (76.5)	0.60 (14.0)	26.67 (12.10)	60.00 (27.22)

Fitting & valve for F75 cups

Item	Part numbers	Notes	Suspensions
75 FITTING 1/8″	A-3250006 32.50.006 07UA	The 75 Fitting 1/8″ with 1/8″ female center port connection with optional M5 (10/32) female port often used as a blow-off port.
75 BUTTON VALVE	A-3350033 33.50.033	The 75 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

F110 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F110-NEO/VALVE (Nitrile)	A-3150079P 31.50.079P F110.30.11UV	G 1/2″ female	4.30 (112.5)	0.70 (19.0)	56.00 (25.40)	126.00 (57.15)
F110-SIT/VALVE (Translucent silicone)	A-3150079S 31.50.079S F110.20.11UV	G 1/2″ female	4.30 (112.5)	0.70 (19.0)	56.00 (25.40)	126.00 (57.15)

Fitting & valve for F110 cups

Item	Part numbers	Notes	Suspensions
110 FITTING 1/2″	A-3250007 32.50.007 11UA	The 110 Fitting 1/2″ with 1/2″ female center port connection with optional NPSF 1/8″ female port often used as a blow-off port.
110/150 BUTTON VALVE	A-3350034 33.50.034	The 110/150 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

F150 Cups with Valves

ANVER description	Part numbers	Connection thread size	Static diameter* [in. (mm)]	Static height* [in. (mm)]	Horizontal load capacity at 24 in. Hg [2:1 safety factor] lb (kg)	Pull-off capacity at 27 in. Hg [1:1 safety factor] lb (kg)	Level compensator suspensions
F150-NEO/VALVE (Nitrile)	A-3150080P 31.50.080P F150.30.15UV	G 1/2″ female	6.13 (155.6)	1.00 (25.0)	106.67 (48.38)	240.00 (108.86)
F150-SIT/VALVE (Translucent silicone)	A-3150080S 31.50.080S F150.20.15UV	G 1/2″ female	6.13 (155.6)	1.00 (25.0)	106.67 (48.38)	240.00 (108.86)

Fitting & valve for F150 cups

Item	Part numbers	Notes	Suspensions
150 FITTING 1/2″	A-3250008 32.50.008 11UA	The 150 Fitting 1/2″ with 1/2″ female center port connection with optional NPSF 1/8″ female port often used as a blow-off port.
110/150 BUTTON VALVE	A-3350034 33.50.034	The 110/150 Button Valve is used in multiple cup applications. If a single cup does not contact the load, that cup’s valve will not open, causing no loss of vacuum while the other cups pick up the load.

ANVER Valve Cup Assemblies

Many new Valve Cup Assembly options are now available by combining select ANVER cups and ANVER fittings to form ‘ANVER Valve Cup Assemblies.’ Using the charts below, click on any photo to see an enlarged image of the completed ANVER Valve Cup Assembly.

Assemblies with HS18-SV fittings

ANVER valve cup assembly	Made from this cup…		…and this fitting
F77-NBR + HS18-SV-SS		+
F77-SIT + HS18-SV-SS		+
F85-NBR + HS18-SV-SS		+
F85-SIT + HS18-SV-SS		+
F95-NBR + HS18-SV-LL		+
F95-SIT + HS18-SV-LL		+

Assemblies with HS18-G-SV fittings

ANVER valve cup assembly	Made from this cup…		…and this fitting
F77-NBR + HS18-G-SV-SS		+
F77-SIT + HS18-G-SV-SS		+
F85-NBR + HS18-G-SV-SS		+
F85-SIT + HS18-G-SV-SS		+
F95-NBR + HS18-G-SV-LL		+
F95-SIT + HS18-G-SV-LL		+

The “G” thread is also known as BSPP, commonly used world-wide for vacuum applications.

Notes

• If you click on the small thumbnail photo it will enlarge for more detail and specifications.
• All cups shown above are identical to P-Style size and shape. The static column is the cup dimensions without a load as given by P-Style.
• The compressed column specifications are the important ones to make sure everything fits. It is the actual size of the cup after full compression (being flattened out) on a level load, which is slightly different from the F series. The bigger the cup, the greater the enlarging of the diameter. A lower vacuum level will lessen this compression or flattening out; however, make sure to leave enough room for the cup under vacuum in your design.
