Description
Mandy220DM DOUBLE AND SINGLE DECK SERVER LIFTER
Mandy220DM-DDA-CCD / -RCA-CCD – 200 kg capacity, lifting to 2440 mm, powered travel
Product Overview

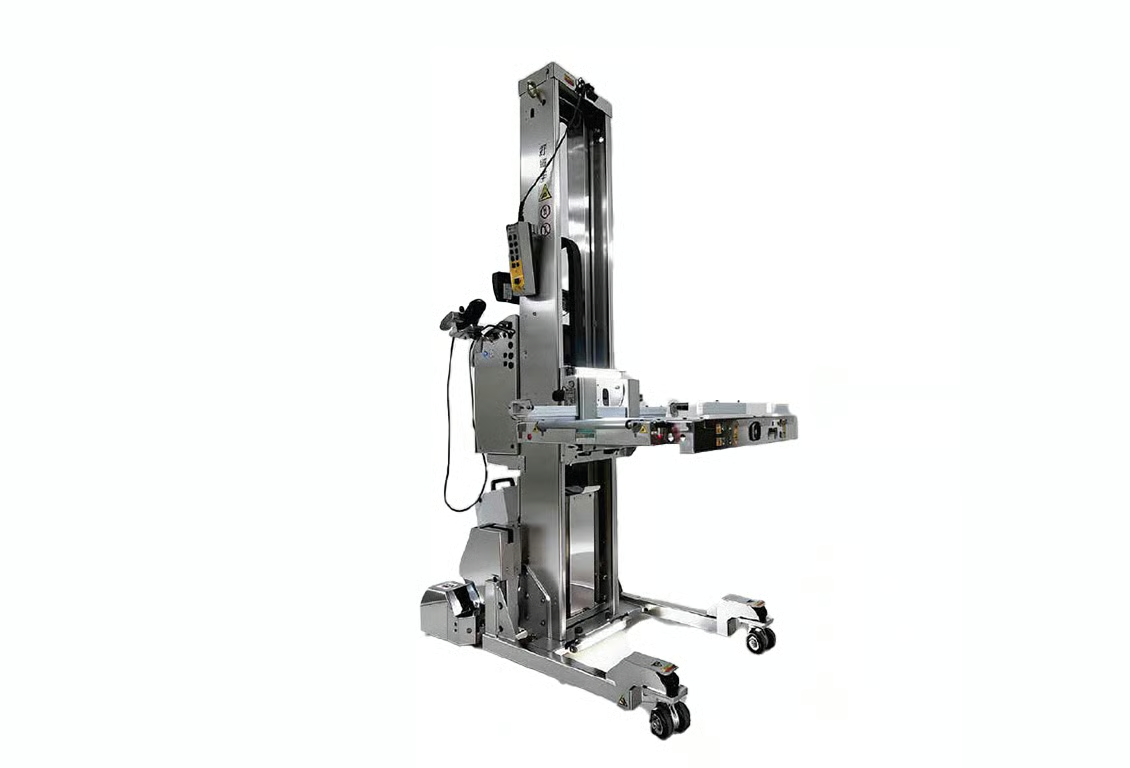

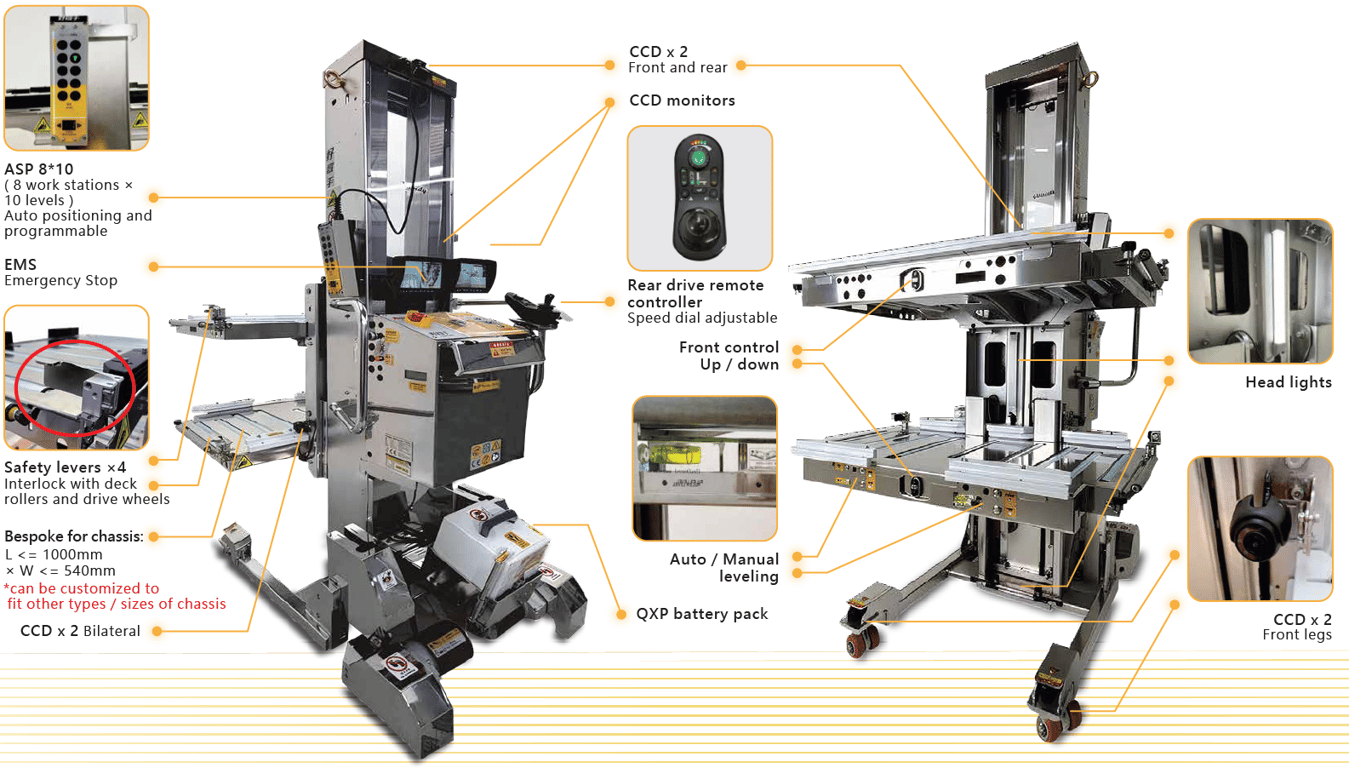

Mandy220DM server lifter, double deck and single deck
The Mandy220DM series comes in two deck configurations for lifting, installing and positioning servers, GPUs, racks and battery packs accurately in a cleanroom environment, operated by one person.
Both versions carry 200 kg and lift at 125 mm/s with smooth starting and stopping. Protection is rated IP41, the body is built in SUS304 stainless steel, and the machine meets cleanroom requirements with ESD protection.
Design and Key Features
QXP Quick-Change Battery Pack
Taiwan: lithium DC 24V / 20Ah x 2 at 8 kg each. International: VRLA DC 24V / 22Ah x 2 at 15 kg each. Swapped quickly with no interruption to work
ASP Advanced Sensor Positioning
Choose 15 stations x 8 levels or 8 stations x 10 levels, programmable with a position memory lock
Powered Travel with STA
Forward 0-3 km/h and reverse 0-1.5 km/h, smooth starting and stopping, with STA safe turning assist
Cleanroom and ESD Protection
Meets cleanroom requirements, with easy-rolling, wear-resistant and non-dusting materials
Two Deck Configurations
Mandy220DM-DDA-CCD · Double Deck
- Lower deck (Rb): 240 – 1900 mm
- Upper deck (Rt): 780 – 2440 mm
- Ideal for 48U racks
- The lower deck suits chassis up to 420 mm high (9U)
- Net weight 373 kg
Mandy220DM-RCA-CCD · Single Deck
- Lifting stroke: 240 – 1900 mm
- Can be adapted to different racks
- Compact build with a single working deck
- Net weight 230 kg / 506 lbs
Operation Video
Dimensions
| Main dimension | Value (mm) |
|---|---|
| Overall size (L x W x H) | 1345 x 1050 x 2208 |
| Mast height (H) | 2208 |
| DDA lifting stroke, lower deck (Rb) | 240 – 1900 |
| DDA lifting stroke, upper deck (Rt) | 780 – 2440 |
| RCA lifting stroke (R) | 240 – 1900 |
Main dimensions in mm – refer to the FULL-SHARP technical drawing.
Technical Specifications
| Parameter | Mandy220DM-DDA-CCDDouble deck · 114111601A | Mandy220DM-RCA-CCDSingle deck · 114082701A |
|---|---|---|
| Overall dimensions | L1345 x W1050 x H2208 mm | |
| Lifting stroke (R) | Lower deck (Rb): 240 – 1900 mm Upper deck (Rt): 780 – 2440 mmIdeal for 48U racks. The lower deck suits chassis up to 420 mm high (9U) |
240 – 1900 mmCan be adapted to different racks |
| Mast height (H) | 2208 mm | |
| Load capacity | 200 kgTotal weight across the lower and upper decks | 200 kg |
| Net weight | 373 kg | 230 kg / 506 lbs |
| Lifting speed | 125 mm/s, with smooth starting and stopping | |
| IP protection | IP41 | |
| Battery | QXP quick-change battery pack:
The lithium battery configuration is supplied to the Taiwan market only |
|
| Charging voltage | 110 – 240V AC, 50/60 Hz | |
| Material | SUS304 stainless steel | |
| Control panel | Push-button control panel, bilingual (Traditional Chinese / English) with icons:
|
|
| Travel speed | Forward 0 – 3 km/h, reverse 0 – 1.5 km/hSmooth starting and stopping, with STA safe turning assist | |
| Cleanroom technology |
|
|
Applications
Product codes Mandy220DM-DDA-CCD (double deck, drawing 114111601A) and Mandy220DM-RCA-CCD (single deck, drawing 114082701A). Specifications are subject to change without notice. The lithium battery configuration is supplied to the Taiwan market only.
