Description
ELECTRIC HYDRAULIC ROLL LIFTER
Self-propelled roll handling from 100 kg to 500 kg, lifting up to 3000 mm
Product Overview

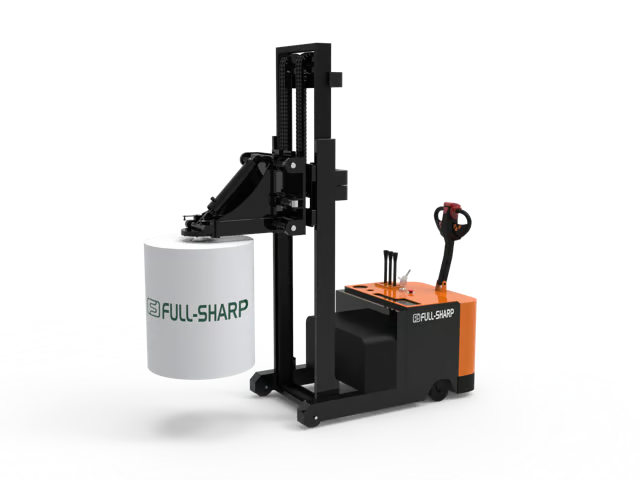

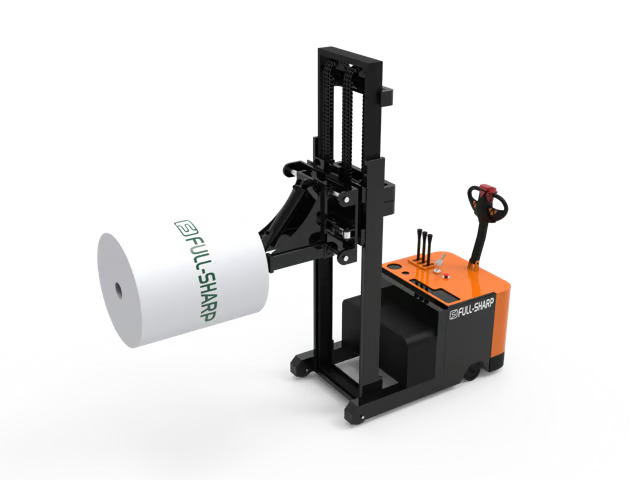

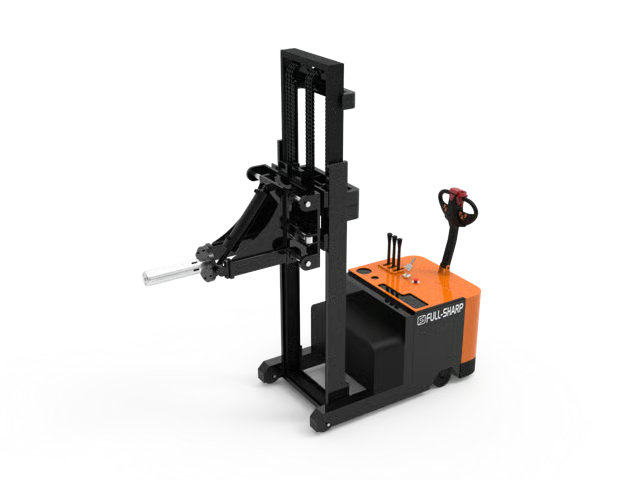

Electric hydraulic roll lifter
A self-propelled roll handling truck with an electro-hydraulic mast and rotating spindle, built for loading, transporting and positioning cylindrical rolls in printing, packaging and converting plants.
Key Features
Purpose-Built Mechanical Design
A dedicated mechanical design shared across the entire electric spindle lifter range, making roll core loading quick and convenient
Emergency Reversing and Braking
Emergency reversing device with instant braking when the tiller handle reaches its uppermost position
Integrated Hydraulics
Hydraulic system and power control integrated into a single unit
Easy, Stable Operation
Simple to operate with stable performance and a small turning radius for confined aisles
Technical Specifications
| Model | FSCDD01016-Q | FSCDD0316-Q | FSCDD0516-Q | FSCDD0530-Q |
|---|---|---|---|---|
| Load capacity (kg) | 100 | 300 | 500 | 500 |
| Maximum lifting height (mm) | 1600 | 1600 | 1600 | 3000 |
| Effective lifting height (mm) | 1000 | 1000 | 800 | 2000 |
| Spindle length (mm) | 400 | 600 | 600 | 800 |
| Roll core diameter (mm) | 76.2 / 152.4 | |||
| Truck weight (kg) | 1100 | 1200 | 1300 | 1376 |
| Overall dimensions (L x W x H) mm | 2550x850x2000 | 2650x850x2000 | 2650x850x2000 | 2750x850x2050 |
| Rotation angle | 90 degrees | |||
| Battery capacity (V/Ah) | 24V / 210Ah | |||
| Charger (V/A) | 24V / 30A | |||
| Drive motor (kW) | 24V / 1.5kW | |||
| Lifting motor (kW) | 24V / 2.5kW | |||
| Power supply | DC motor | |||
| Braking | Electromagnetic braking | |||
| Certification | CE, ISO, TUV, GS | |||
| Country of origin | China | |||
