MOBILE MINI CRANE 1000 KG
Model FS-1000-0BDZ – remote-controlled boom, electric travel, 2300 mm hook height
Product Videos
Product Overview

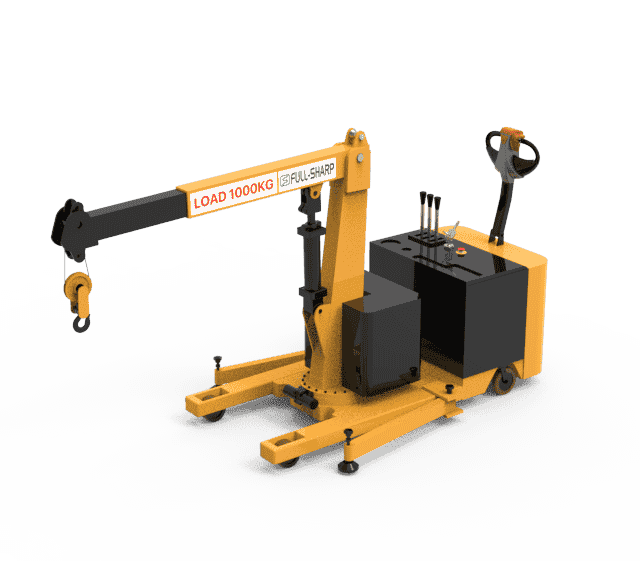

FS-1000-0BDZ mobile mini crane
The largest machine in the range, rated at 1000 kg with the boom retracted and 500 kg at full reach. Electric travel, a remote-controlled hydraulic boom and full 360° slewing let one operator position heavy loads in workshops, machine shops and maintenance bays without a forklift.
Key Features
1000 kg Lifting Capacity
- 1000 kg at the shortest boom position, 500 kg at full extension
- Hook height of 2300 mm with a 400 mm cylinder stroke
Full Remote Operation
- Boom raising, lowering and the electric winch all run from one 8-button remote
- The operator can stand clear of the load while positioning it
Electric Travel and 360° Slewing
- 48V / 700W drive motor, around 4.5 hours of work per charge
- Boom slews a full 360° with 1150-1450 mm adjustable reach
Product Photos
Dimension Drawing
Technical Specifications
| Parameter | Unit | FS-1000-0BDZ |
|---|---|---|
| Boom raising and lowering control | – | Remote control |
| Electric winch control | – | Remote control |
| Travel method | – | Electric drive |
| 360° boom slewing | – | Yes |
| Maximum load at shortest boom | kg | 1000 |
| Maximum load at longest boom | kg | 500 |
| Maximum boom length (horizontal reach) | mm | 1150-1450 |
| Hydraulic cylinder stroke | mm | 400 |
| Chassis base to hook | mm | 600-1200 |
| Folded dimensions (L x W x H) | mm | 1950 x 800 x 1800 |
| Base dimensions (L x W) | mm | 1800 x 800 |
| Maximum machine height | mm | 2800 |
| Maximum lifting height (hook) | mm | 2300 |
| Main wheel diameter | mm | 248 |
| Hydraulic pump power | kW | 1.5 |
| Drive motor (voltage / power) | V/W | 48 / 700 |
| Battery | V/Ah | 12 / 120 |
| Charger | V/A | 12 / 12 |
| Full charging time | hours | 8 |
| Continuous working time per charge | hours | approx. 4.5 |
| Remote control function buttons | pcs | 8 |
| Packing dimensions (L x W x H) | m | 2.25 x 0.96 x 1.9 |
| Machine weight (excluding counterweight) | kg | 480 |
| Packing weight | kg | 670 |
Specification Summary
Max Load
1000kg
Lifting Height
2300mm
Pump Power
1.5kW
Battery
12/120V/Ah
Electric Travel
Yes
360° Slewing
Yes
