Description
ELECTRIC VACUUM SWITCHES AND PRESSURE SENSORS
Model number A-3116040
Product Overview
A-3116040

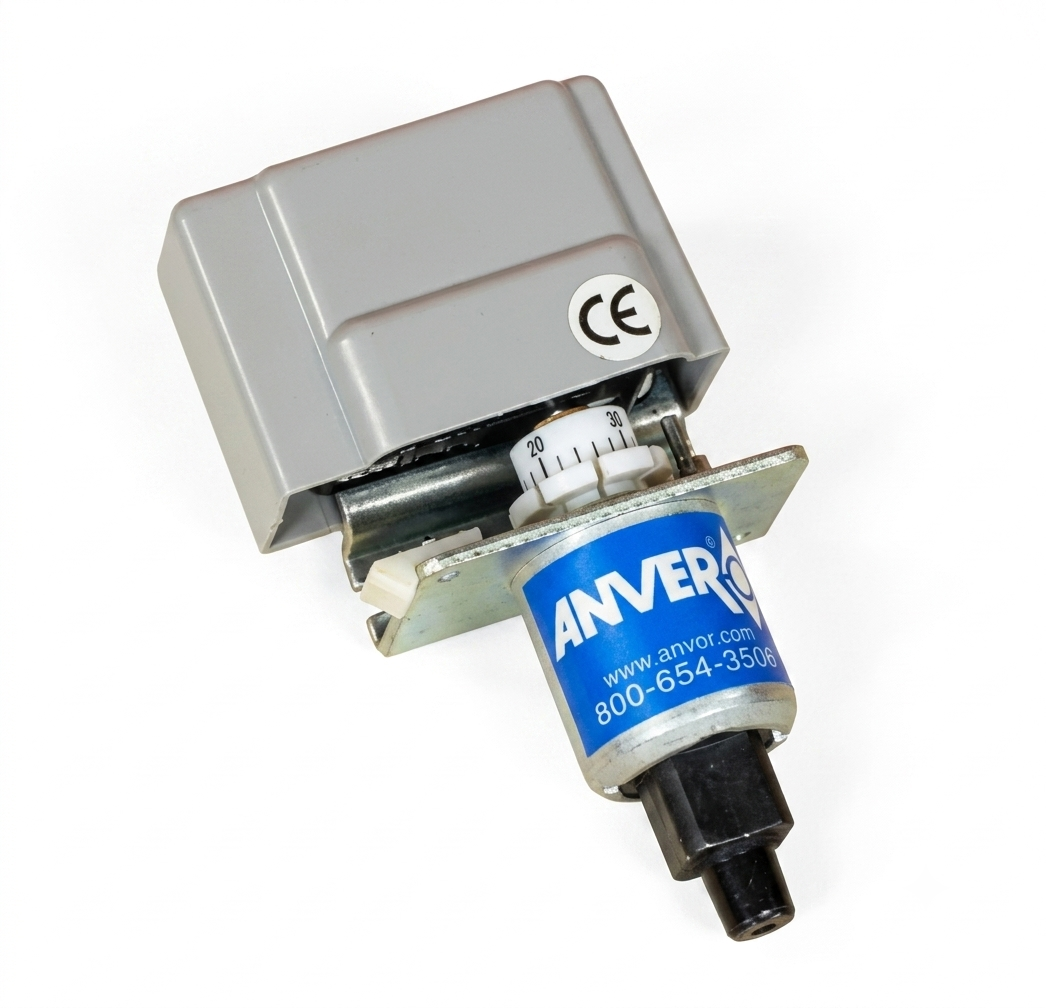

ANVER’s A-3116040 Vacuum/Pressure Switch is designed for heavy-duty applications requiring accuracy and a wide vacuum range with a NEMA 1 enclosure. A shroud covers the internal wires, while the calibration dial is easily accessible.
Part Number
| Part number | Direct replacement for P-Style switch number |
|---|---|
| A-3116040 | EVS54 (31.16.040) |
A-3116040 side views
Specifications for A-3116040 Vacuum / Pressure Switch
| Parameter | Value |
|---|---|
| Vacuum range | 0 to 30 inHg |
| Output | SPDT switch |
| Enclosure | NEMA 1 |
| Pressure connection | 360 aluminum alloy |
| Current | 15 amps |
| Voltage | 125/250/480 Vac |
| Differential | Fixed (1.5 to 3.5 inHg) |
| Max. pressure | 50 psi |
| Item weight [lb (kg)] | 0.40 (0.18) |
