Articulating Servo Arms
Articulating Servo Arms
Models: KSHCA / KSHFA – 500 / 1000 / 1500-2301

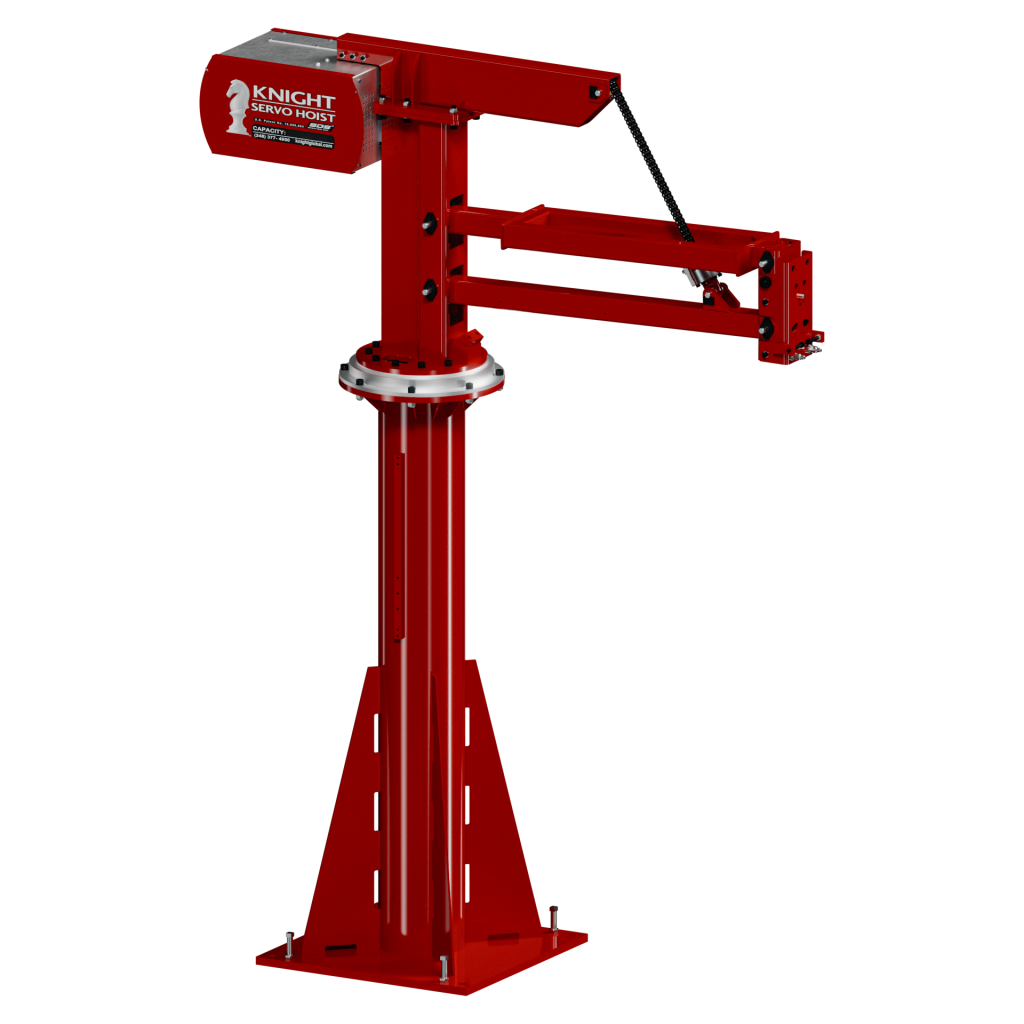

The Knight KSHCA (overhead carriage mounted) and KSHFA (floor mounted) are Intelligent Assist Devices (IAD) that let the operator reach beyond the area directly under the rail system and position a load precisely along the “Z” axis (vertical) with high speed and reliability.
Knight’s servo hoist technology becomes an extension of the operator’s natural motion, improving accuracy, responsiveness and repeatability – and with them overall safety, throughput and quality. The main benefits: wasted motion is eliminated, reaction time is shortened, and inertia effects with heavy loads are reduced.
Mechanical
- Speed: up to 98 ft/min [30 m/min].
- Maximum reach: up to 48 in. [1,219 mm], excluding boom and end effector.
- Floor pedestal height: 2.4 m to 3.0 m.
- 125% safety factor.
- Fail-safe brake.
- Heavy-duty roller chain.
- Chain length: 12 ft [365 cm] to 20 ft [609 cm].
- Sealed worm-style gearbox.
- H5 duty rating – continuous duty cycle.
Software
- Programming and diagnostic port.
- Virtual travel limits.
- Speed reduction zones.
- Impact limiting.
- Active damping.
- Standard Float Mode.
- Programmable overload capability.
Electrical
- Industry-standard 24 VDC, 2 A supply for custom tooling (grippers, vacuum cups, switches, sensors, lights).
- Illuminated Run/Stop button.
- 240 VAC, single phase, 50/60 Hz.
- Load sensing: payload and handle load.
- I/O capability:
- 16 inputs / 8 outputs.
- 8 inputs / 4 outputs free for interface control.
- Status LEDs – illuminated green and blue push buttons.
- Fault LED; twist the Run/Stop button to release.
- Optional remote pendant or remote handle.
| Model Code | Capacity lbs [kg] | Max Speed fpm [mpm] | Voltage / Phase |
|---|---|---|---|
| KSHCA500-2301 | 500 lbs [226 kg] | 98.43 fpm [30.0 mpm] | 240V / 1 phase |
| KSHCA1000-2301 | 1,000 lbs [453 kg] | 82.02 fpm [25.0 mpm] | 240V / 1 phase |
| KSHCA1500-2301 | 1,500 lbs [680 kg] | 65.62 fpm [20.0 mpm] | 240V / 1 phase |
| Model Code | Capacity lbs [kg] | Max Speed fpm [mpm] | Voltage / Phase |
|---|---|---|---|
| KSHFA500-2301 | 500 lbs [226 kg] | 98.43 fpm [30.0 mpm] | 240V / 1 phase |
| KSHFA1000-2301 | 1,000 lbs [453 kg] | 82.02 fpm [25.0 mpm] | 240V / 1 phase |
| KSHFA1500-2301 | 1,500 lbs [680 kg] | 65.62 fpm [20.0 mpm] | 240V / 1 phase |
* Application overview
* Servo arm – vehicle body lift assist
* Servo hoist extension arm
* XYZ servo system – car seat installation
* Servo arm – bonnet lift assist
* Servo hoist – turbocharger lifting
* Hybrid battery installation with a servo arm
* Motorcycle engine installation with a servo
- Integrated LMM and OCI modules.
- 750 lb programmable load cell.
- Illuminated Float/Lift and Run-Stop buttons.
- Up to four M12 4-pin ports.
Weight: 6.81 kg | Capacity: 750–2,000 lbs
- Programmable load cell.
- Ethernet programming port.
- Up to three M12 4-pin I/O ports.
- Supplied with the KSAA1004 shackle.
Used with a pendant or fixture handle
- Ethernet programming port.
- 19-pin M23 connectors in and out.
- Supplied with the KSAA1004 shackle.
- Used with a separate OCI (KCA1015).
For when the operator cannot reach the Run-Stop
- Two-speed control.
- 9-pin D-Sub programming port.
- Illuminated Float/Lift and Run-Stop buttons.
- Optional trigger configuration.
Weight: 2.29 kg
- 500 lb amplified load cell.
- No buttons to press – just grip the handle.
- Reaction force under 0.68 kg.
- 8-pin M12 cable included.
Weight: 4.96 kg
- Range: 900 ft [300 m].
- 62 programmable channels; AA batteries last over 100 hours.
- KCA1004: 4 buttons | 1005: 6 buttons | 1006: 8 buttons.
FCC Part-15 and CE compliant
- Mounts directly to the fixture.
- Illuminated LIFT, FLOAT and RUN-STOP buttons.
- KCA1014: rear cable entry | KCA1015: side entry.
Weight: 1.59 kg / 3.1 kg
- Two thumb paddles, four switches.
- Half travel = speed 1 | full travel = speed 2.
- IP67 | UL Listed, CE approved.
Weight: 1.13 kg
- Two thumb paddles plus one trigger.
- Five switches in total.
- IP67 | UL Listed, CE approved.
Weight: 1.27 kg
- Standard ANSI 50-2 double chain.
- KSHD1021-12: 12 ft | -20: 20 ft.
- Average tensile strength: 12,200 lbs [5,534 kg].
Maximum load: 2,000 lbs [908 kg]
- Quick release by pull pin.
- KSAA1001: 16 mm | KSAA1002: 20 mm.
- Heat-treated alloy steel.
Maximum load: 680–907 kg
- 4140 steel body, heat treated to Rockwell C 38–42.
- Secured with two M6 steel pins.
- Mounts below the load cell.
Maximum load: 453 kg [1,000 lbs]
- Enlarged connection hole for the swivel hook.
- Supplied with the KSAD1022 swivel hook.
- Heat-treated 4140 steel.
Weight: 2.08 kg | Capacity: 1,000 lbs
- Grade 100 – 20% stronger than Grade 80.
- Self-locking under load.
- Anti-friction bearing, 360° swivel.
Weight: 0.72 kg | Capacity: 1,451 kg
- Locks the hoist against travel along the rail.
- Pneumatic brake, mounts fore or aft.
- Replaceable brake pads.
Weight: 2.72 kg
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C.
Max load: 1,134 kg | Weight: 4.31 kg
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -29°C to +120°C.
Max load: 725 kg | Weight: 3.45 kg
- High-impact nylon wheels with a glass core.
- Double-shielded bearings, no lubrication required.
- -7°C to +120°C.
Max load: 408 kg | Weight: 2.04 kg
- Coils around the servo hoist chain.
- 19-pin military bayonet connector.
- Lengths 2–20 ft (KCA1040-2 to -20).
Made exclusively for Knight Global
- Connects the handle to the servo hoist.
- 19-pin military bayonet connector.
- Lengths 2–15 ft (KCA1041-2 to -15).
Made exclusively for Knight Global
- Grey PVC, 22 AWG, 4 A, 300 V.
- Straight or 90° right-angle connectors.
- Lengths 1–6 m.
Contact FULLSHARP to order
- Converts 480 VAC to 240 VAC.
- Finger-safe 3 KVA transformer.
- 15 A primary and secondary breakers.
- For use with a single servo run.
- Converts 480 VAC to 240 VAC.
- Finger-safe 5 KVA transformer.
- 25 A primary and secondary breakers.
- For double or triple servo runs.
- Holds the panel at an ergonomic height.
- Multiple adjustable height settings.
- M10×1.5 Nylock bolts.
