Ann230A-RCS CLEANROOM ELECTRIC LIFTER
Stainless steel column lifter for hygiene-critical areas – 80 kg capacity, lifting to 1900 mm
Product Overview

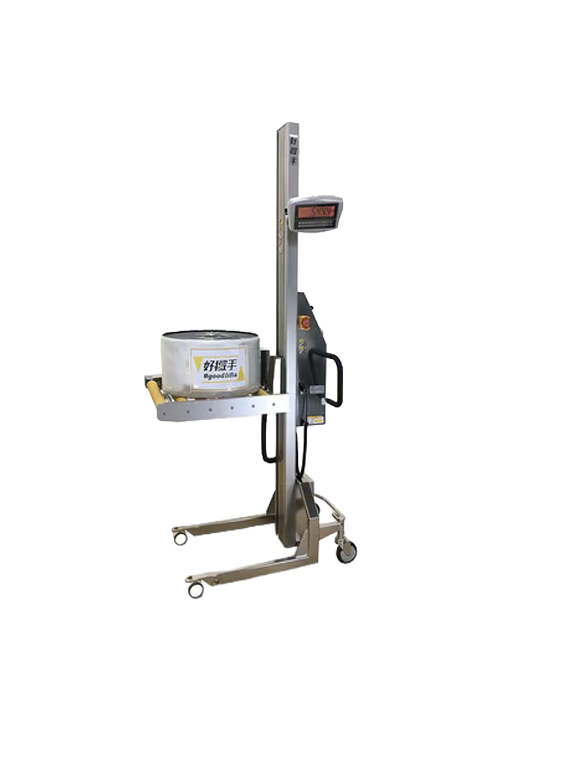

Ann230A-RCS compact electric lifter
A compact electric lifter built on a 304 stainless steel frame for logistics and manufacturing areas with high hygiene requirements. The movable roller top plate makes loading and unloading straightforward and suits standard baskets and plastic bins.
The unit runs on a DC 24V battery at a lifting speed of 125 mm/s. Optional upgrades include a position lock, alternative wheels and a lithium battery for longer running time.
Technical Specifications
| Parameter | S1160 | S1190 | S1220 |
|---|---|---|---|
| Mast height (mm) | 1600 | 1900 | 2200 |
| Lifting height (mm) | 1300 | 1600 | 1900 |
| Lifting speed (mm/s) | 125 | 125 | 125 |
| IP protection | IP41 | IP41 | IP41 |
| Battery | 24V / 10Ah lead-acid | 24V / 10Ah lead-acid | 24V / 10Ah lead-acid |
| Charging power | 100-240 VAC, 50/60 Hz | 100-240 VAC, 50/60 Hz | 100-240 VAC, 50/60 Hz |
| Charging time | 4 hours | 4 hours | 4 hours |
| Load capacity | 80 kg | ||
Optional Upgrades
| Option | Description |
|---|---|
| IP protection | Upgrade to IP66 |
| 75 mm swivel wheel | Front leg height 92 mm |
| 80 mm fixed wheel | Front leg height 85 mm |
Note: the configuration can be adapted to suit the customer’s actual working requirements.
