WilsonX-RCS SERVER AND RACK LIFTER
WilsonX190D-RCS / WilsonX220D-RCS – 120 kg capacity, lifting to 1800 mm, powered travel
Product Overview
Click any image to view it full size.

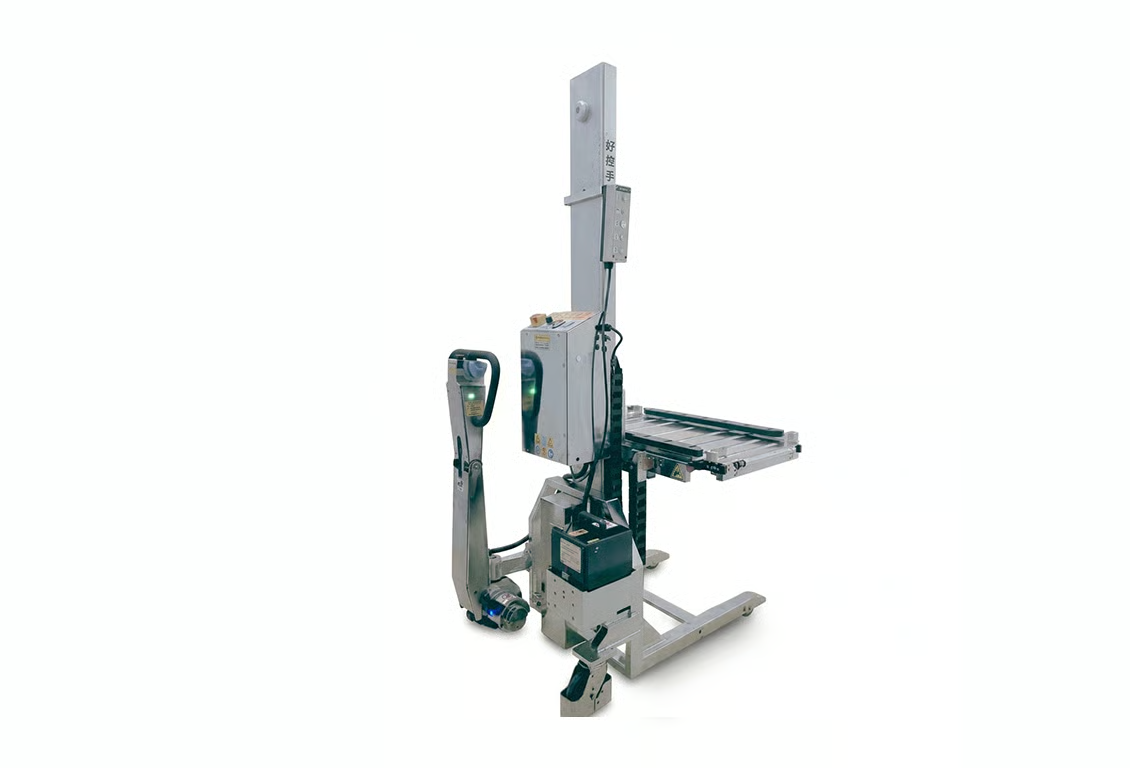

WilsonX-RCS server and rack lifter
The WilsonX-RCS series comes in two mast heights for lifting, installing and positioning servers, GPUs, racks and battery packs accurately in a cleanroom environment. The unit travels under its own power and is designed for safe single-operator use.
Both versions carry 120 kg and lift at 125 mm/s with smooth starting and stopping. Protection is rated IP41, the body is built in SUS304 stainless steel and aluminium, and the machine meets Class 1000 cleanroom requirements with ESD protection.
Design and Key Features

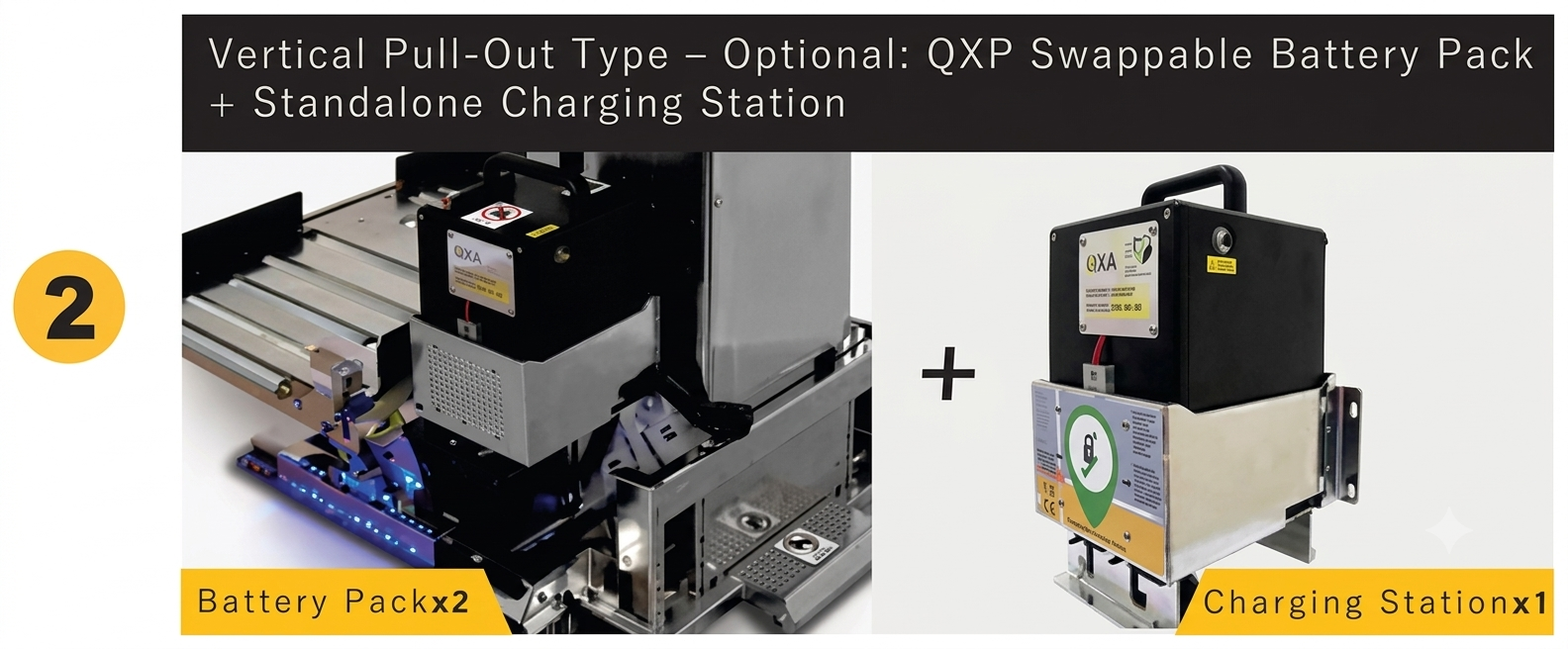

QXP Quick-Change Battery Pack
Lithium DC 24V / 20Ah x 2, swapped quickly with no interruption to work
Powered Travel
Forward 0-3 km/h and reverse 0-1.5 km/h, with smooth starting and stopping and automatic slowing into turns, so the tail does not swing out
Safety by Design
FCW automatic forward guard, ERB anti-pinch on reverse, STA turn deceleration, anti-pinch wheel covers, MP3 audible warning and an optional warning light
Cleanroom and ESD Protection
Meets Class 1000, with specialist wheel materials that roll easily, resist wear and do not generate dust
Two Mast Heights
WilsonX220D-RCS · 2200 mm
- Lifting stroke (R): 200 – 1800 mm
- Mast height (H): 2200 mm, linear guide rail version
- Suits tall racks and a longer working reach
- Load capacity 120 kg
WilsonX190D-RCS · 1900 mm
- Lifting stroke (R): 200 – 1500 mm
- Mast height (H): 1900 mm, linear guide rail version
- Compact build with a lower overall height
- Load capacity 120 kg
Operation Video

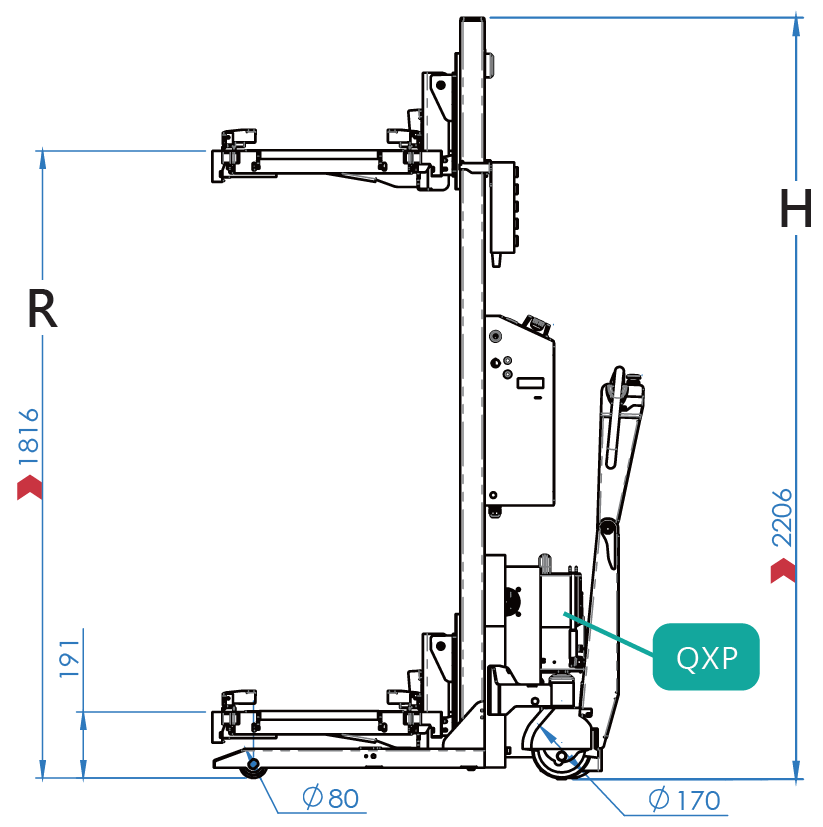

Dimensions
| Main height | Value (mm) |
|---|---|
| WilsonX190D – lifting stroke (R) | 200 – 1500 |
| WilsonX190D – mast height (H) | 1900 (linear guide rail version) |
| WilsonX220D – lifting stroke (R) | 200 – 1800 |
| WilsonX220D – mast height (H) | 2200 (linear guide rail version) |
Main heights in mm – refer to the FULL-SHARP technical drawing.
Technical Specifications
| Parameter | WilsonX190D-RCS1900 mm version | WilsonX220D-RCS2200 mm version |
|---|---|---|
| Lifting stroke (R) | 200 – 1500 mm | 200 – 1800 mm |
| Mast height (H) | 1900 mmLinear guide rail version | 2200 mmLinear guide rail version |
| Load capacity | 120 kg | |
| Lifting speed | 125 mm/s, with smooth starting and stopping | |
| IP protection | IP41 | |
| Battery | QXP quick-change battery pack – lithium DC 24V / 20Ah x 2The lithium battery configuration is supplied to the Taiwan market | |
| Charging voltage | 100 – 220V AC, 50/60 Hz | |
| Material | SUS304 stainless steel and aluminium | |
| Travel speed | Forward 0 – 3 km/h, reverse 0 – 1.5 km/hSmooth starting and stopping, slowing into turns so the tail does not swing out | |
| Cleanroom technology |
|
|
| Safety design |
|
|
Applications
Product codes WilsonX190D-RCS (1900 mm version) and WilsonX220D-RCS (2200 mm version). Specifications are subject to change without notice. The lithium battery configuration is supplied to the Taiwan market.
