PNEUMATIC TILT AND ROTATE GLASS LIFTER
FS-QFX series – 150 kg to 500 kg, pneumatic 90° tilt and 90° rotation
Product Overview

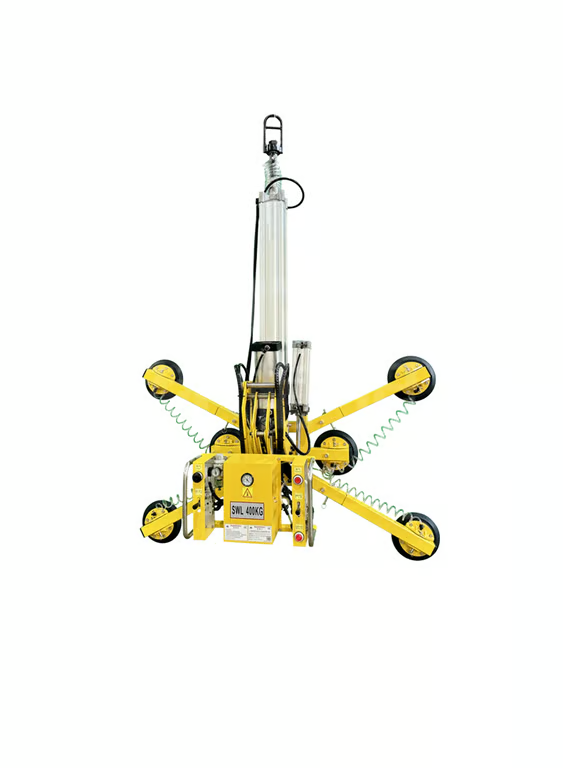

FS-QFX vacuum lifter for glass deep processing
The FS-QFX series holds and positions glass during deep-processing operations. Typical applications are vacuum glazing production lines, glass laminating lines, glass polishing, and loading and unloading at waterjet cutting stations.
Pneumatic control gives both 90° tilting and 90° rotation, and German HAFNER control valves allow precise fine adjustment of the cylinders. The lifter works with an overhead bridge crane, a jib crane, or a suspended rail.
Key Features
Holding and Positioning
- Purpose-built for holding glass in position during deep processing
- Four models covering 150 kg to 500 kg
Tilt and Rotate
- Pneumatic tilting through 90°
- Pneumatic rotation through 90°
German HAFNER Valves
- HAFNER pneumatic control valves
- Precise fine adjustment of the cylinders
Wide Application Range
- Vacuum glazing lines, laminating lines and polishing
- Loading and unloading at waterjet cutting stations
Three Mounting Options
- Overhead bridge crane, jib crane or suspended rail
- Quick and convenient in daily operation
Fully Pneumatic
- Runs on compressed air at 0.6-0.8 MPa
- No electrical supply needed at the lifter
Technical Specifications
| Parameter | FS-QFX150-2S | FS-QFX250-4S | FS-QFX350-6S | FS-QFX500-6S |
|---|---|---|---|---|
| Safe working load (kg) | 150 | 250 | 350 | 500 |
| Dimensions (mm) | 760 x 250 | 830 x 650 (extended: 1730 x 1100) | 830 x 650 (extended: 1730 x 1100) | 1020 x 810 (extended: 1930 x 1300) |
| Suction cup diameter (mm) | 250 | 250 | 250 | 300 |
| Number of suction cups | 2 | 4 | 6 | 6 |
| Power system | Pneumatic (0.6 – 0.8 MPa) | Pneumatic (0.6 – 0.8 MPa) | Pneumatic (0.6 – 0.8 MPa) | Pneumatic (0.6 – 0.8 MPa) |
| Control method | Manual operation | Manual operation | Manual operation | Manual operation |
| Movement | Pneumatic tilt 0-90° and pneumatic rotation 0-90° on all models | |||
| Control valves | HAFNER (Germany) | |||
Operation Video
Tilting and rotating glass in processing
Range Summary
Capacity Range
150-500kg
Models Available
4
Tilt
0-90deg
Rotation
0-90deg
Cups
2-6
Air Pressure
0.6-0.8MPa
