OPTICAL GLASS PROCESSING VACUUM LIFTER
Model FS-QFD400-6S – 400 kg, electric cylinder lift with pneumatic 0-90° turning
Product Overview

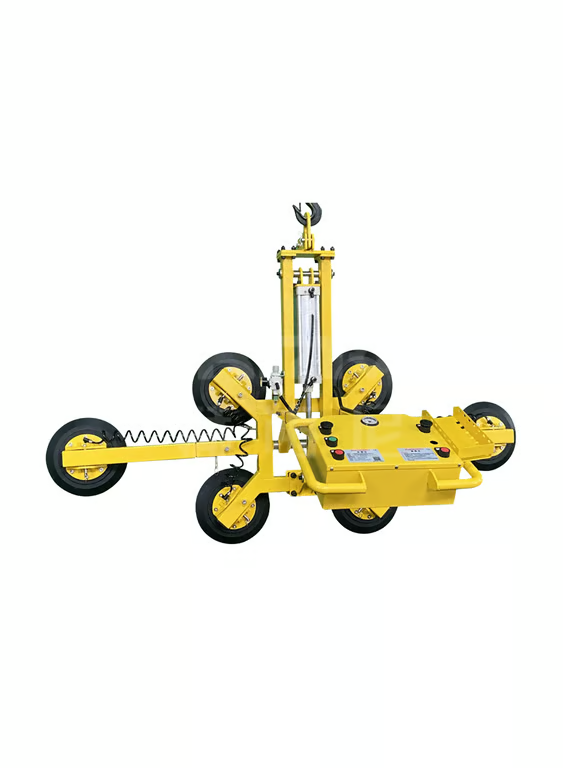

FS-QFD vacuum lifter for optical glass production
The FS-QFD series is made for optical glass production and processing, glass sub-frame bonding, general glass processing and curtain wall manufacture. An electric cylinder raises and lowers the unit, and pneumatic actuation turns the glass through 90°.
The equipment places low demands on cleanroom classification, so it can be used in workshops with a lower cleanliness grade. It works from a fixed column, an articulated jib crane, or an in-plant transfer trolley.
Key Features
Built for Optical Glass
- Optical glass production and processing
- Also suits sub-frame bonding and curtain wall manufacture
Low Cleanroom Requirement
- Places low demands on cleanroom classification
- Usable in workshops with a lower cleanliness grade
Electric Lift, Pneumatic Turn
- Electric cylinder for raising and lowering
- Pneumatic turning through 90°
Three Mounting Options
- Fixed column, articulated jib crane, or in-plant transfer trolley
- Installed to suit the layout of an existing line
Compact, Extending Frame
- 860 x 680 mm folded, extending to 1760 x 1130 mm
- Handles a range of pane sizes from one frame
Six 250 mm Cups
- 400 kg spread across six cups
- Distributed grip for thin or delicate panes
Technical Specifications
| Parameter | FS-QFD400-6S |
|---|---|
| Model | FS-QFD400-6S |
| Safe working load | 400 kg |
| Dimensions (mm) | 860 x 680 (extended: 1760 x 1130) |
| Suction cup diameter (mm) | 250 |
| Number of suction cups | 6 |
| Air supply | Pneumatic (0.6 – 0.8 MPa) |
| Lifting | Electric cylinder |
| Turning | Pneumatic 0-90° |
| Control method | Manual operation |
| Mounting | Fixed column, articulated jib crane or transfer trolley |
Operation Video
Turning glass in processing
Specification Summary
Safe Working Load
400kg
Suction Cups
6x 250 mm
Turning
0-90deg
Air Pressure
0.6-0.8MPa
Extended Size
1760x 1130 mm
Lift
Electric
