Flash205C-RCS SERVER LIFTER
Intelligent server lifting for cleanrooms – 50 kg capacity, 1800 mm stroke, 250 mm/s
Product Overview
Flash205C-RCS intelligent server lifter
A one-person solution for lifting and installing servers, GPUs, rack chassis and battery packs accurately in a cleanroom environment.
The unit carries 50 kg over a 380 to 1800 mm stroke at 250 mm/s with smooth starting and stopping, meets Class 1000 cleanroom requirements and includes ESD protection. Protection is rated IP41 and the body is built in 304 stainless steel and aluminium.

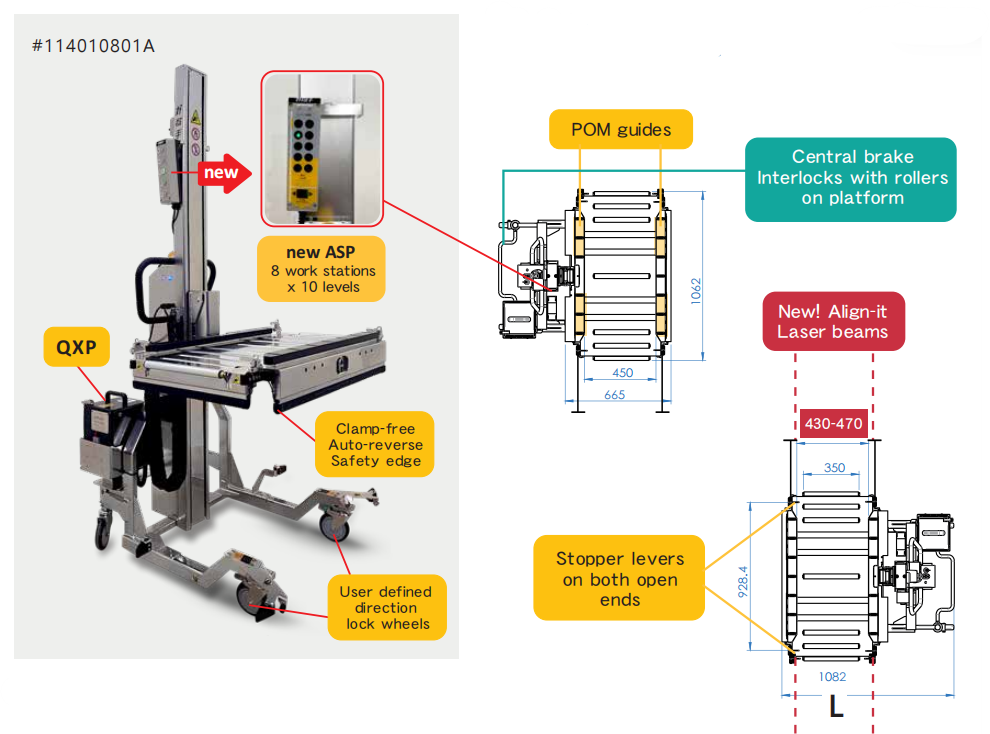

Design and Key Features
QXP Quick-Change Battery Pack
Swap the battery pack in seconds with no interruption to work
ASP Sensor Positioning
8 working stations x 10 levels, programmable with a position memory lock
Self-Reversing Safety Edge
Clamp-free operation – the lift reverses automatically on meeting an obstruction
Directional Locking Castors
The operator sets the direction of travel with lockable castors
Operation Video

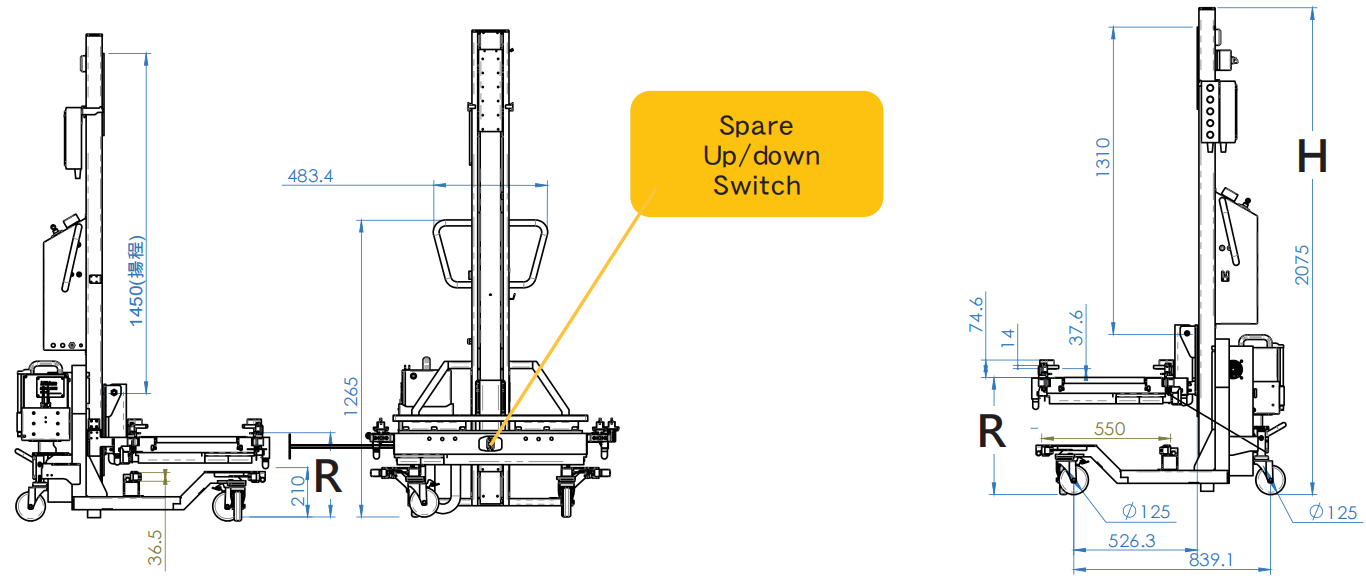

Dimensions
Click any image to view it full size.
| Main dimension | Value (mm) |
|---|---|
| Overall size (L x W x H) | 1082 x 1062 x 2075 |
| Mast height (H) | 2075 |
| Lifting stroke (R) | 380 – 1800 |
| Base width | 1082 |
| Castor diameter | 125 |
Main dimensions in mm – refer to technical drawing #114010801A.
Technical Specifications
| Parameter | Flash205C-RCS |
|---|---|
| Overall dimensions | L1082 x W1062 x H2075 mm |
| Lifting stroke (R) | 380 – 1800 mm Can be adjusted to suit the actual application |
| Mast height (H) | 2075 mm |
| Load capacity | 50 kg |
| Net weight | 185 kg / 348 lbs |
| Lifting speed | 250 mm/s, with smooth starting and stopping |
| Battery | QXP quick-change battery pack DC 24V / 22Ah x 2 (VRLA) for international markets |
| Charging voltage | Input 110 – 220V AC, 50/60 Hz |
| IP protection | IP41 |
| Material | 304 stainless steel and aluminium |
| Control panel | A clear, easy to use control panel:
|
| Cleanroom technology |
|
| Positioning and guidance options |
|
Applications
Product code Flash205C-RCS, drawing #114010801A. Specifications are subject to change without notice. The lithium battery configuration is supplied to the Taiwan market only.
