CUSTOMIZED LIFTING TOOLS

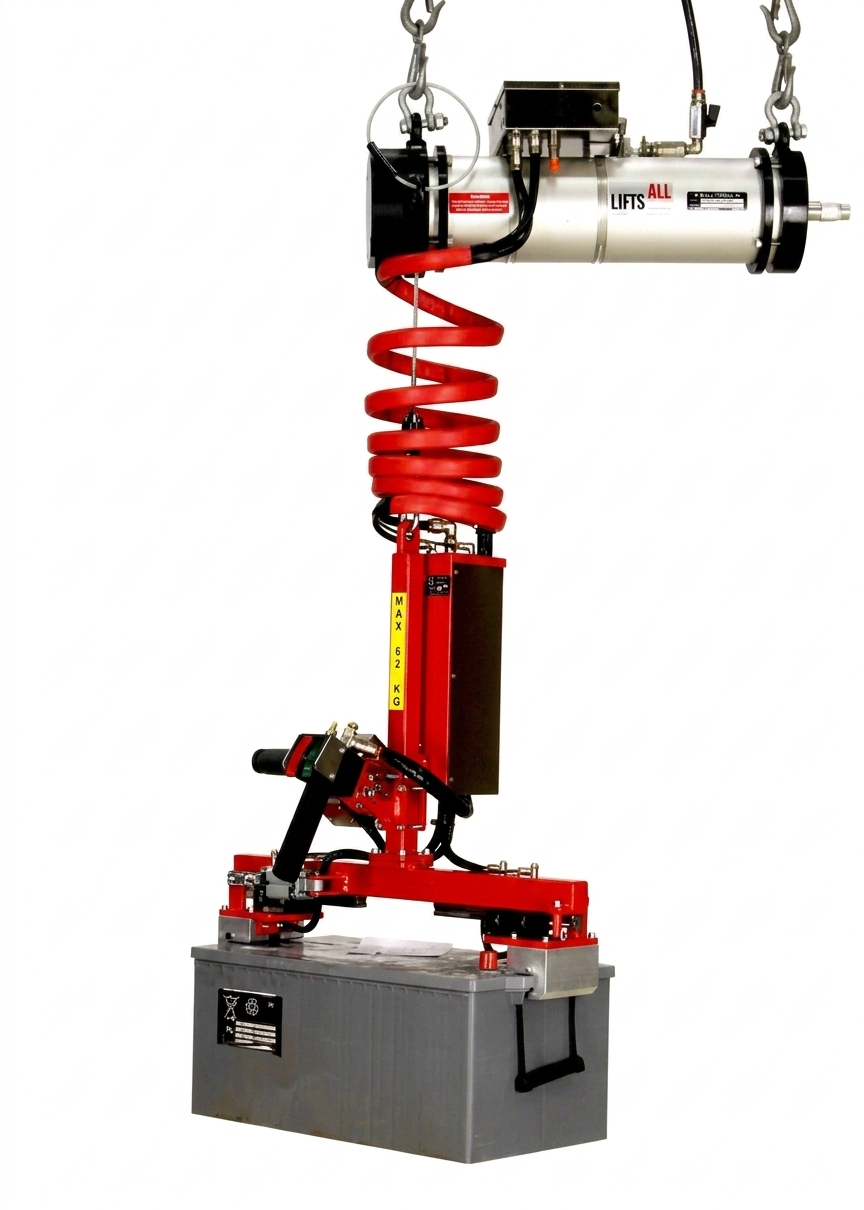

Battery gripper 89-10768

This is our bus battery lift for those who need to lift batteries smoothly and safely. It is a mechanical lift that grips by clamping.

Product name	Battery Lift 89-10768
Article number	89-10768
Serial number	5165
Type of lifted object	Battery
Maximum capacity (kg)	62
Weight (kg)	13
Gripping technology	Mechanical
Optional control	PSH
Industry	Battery industry
Brand	Lifts All

This is our bus battery lift for those who need to lift batteries smoothly and safely. It is a mechanical lift that grips the battery by clamping it from both sides during the lift. The tool itself weighs 13 kg but has maximum capacity lifting maximum capacity to 62 kg. You control the lifting tool with the Pro Speed Handle, which allows you, the operator, to easily control the up and down speed when using the tool.

Place the gripper on top of the load. Push the green button to grip the battery. The Green Eye (pressure indicator) indicates that the battery is firmly attached and can be lifted safely. If the load isn’t properly attached, the gripper will not lift the load. When you have moved the load to its desired location, lower the load and press the red button to disengage the gripper from the battery.

We will customize the lifting tool to optimally fit your lifting needs and your work environment. We can construct the gripper for the type of load you need to lift and the maximum lifting capacity you require. It is also possible for it to rotate or tilt, if that is what you need. Your needs dictate our designs.
