HYDRAULIC GLASS VACUUM LIFTER
FS-YFX series – 1500 kg to 10 tonnes, hydraulic tilt 0-90° and rotation 0-360°
Product Overview

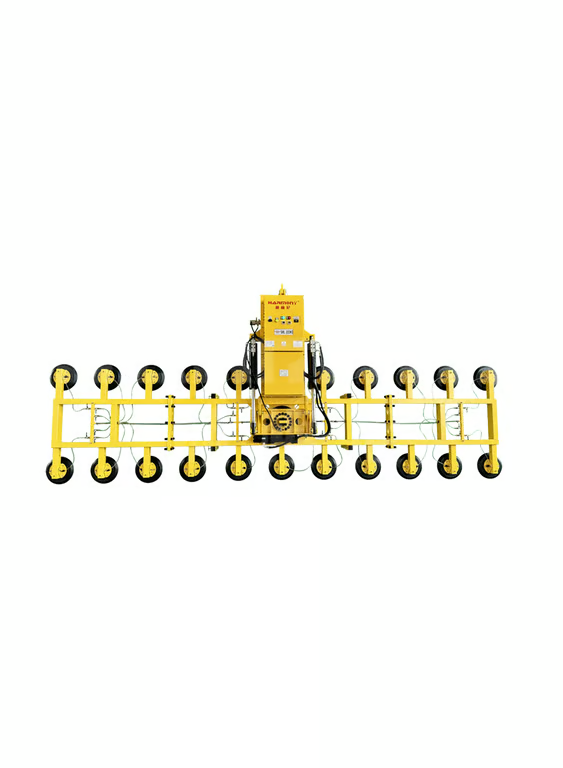

FS-YFX hydraulic tilting and rotating vacuum lifter
The FS-YFX series is built for installing and moving large glass. Hydraulic drive gives 0-90° tilting and a full 0-360° rotation, so a panel can be taken from horizontal to vertical and aligned to the opening without a second lift.
The vacuum structure is modular, with independent vacuum systems and wireless remote control. A built-in delayed exhaust prevents accidental release, the frame can be joined in sections to suit different glass sizes, and a large-capacity battery gives longer working time between charges.
Key Features
For Large Glass
- Designed for installing and handling large glass panels
- Six models from 1500 kg to 10 tonnes
Hydraulic Tilt and Rotation
- Hydraulic tilting through 0-90°
- Hydraulic rotation through a full 0-360°
Modular Vacuum Structure
- Modular pad groups, each with an independent vacuum system
- Redundancy across circuits rather than one shared supply
Delayed Exhaust Safety
- Built-in release delay prevents accidental operation
- The panel cannot be dropped by a mistaken button press
Sectional Frame
- Frame can be joined in multiple sections
- One machine covers a range of glass sizes
Long Battery Life
- Large-capacity battery for extended working time
- DC 24V system with wireless remote control
Technical Specifications
| Parameter | FS-YFX1500-16S | FS-YFX2000-22S | FS-YFX2500-26S | FS-YFX3000-8S | FS-YFX5T-12S | FS-YFX10T-20S |
|---|---|---|---|---|---|---|
| Safe working load (kg) | 1500 | 2000 | 2500 | 3000 | 5000 | 10000 |
| Overall dimensions (mm) | (1375+2500+1375) x 1340 x 580 | (1375+2500+1375) x 1340 x 580 | (1375+2500+1375) x 1340 x 580 | (1250+2500+1250) x 1800 | (2000+4300+2000) x 1900 | (3000+6000+3000) x 1900 |
| Suction cup size (mm) | 300 dia. | 300 dia. | 300 dia. | 1000 x 640 | 1000 x 640 | 1000 x 640 |
| Number of suction cups | 16 | 22 | 26 | 8 | 12 | 20 |
| Voltage | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
| Control method | Wireless | Wireless | Wireless | Wireless | Wireless | Wireless |
| Movement | Hydraulic tilt 0-90° and hydraulic rotation 0-360° on all models | |||||
Operation Videos
Glass lifter in operation
Tilting and rotating a panel
Installation on site
Range Summary
Capacity Range
1.5-10tonnes
Models Available
6
Tilt
0-90deg
Rotation
0-360deg
Cups
8-26
Control
Wireless
